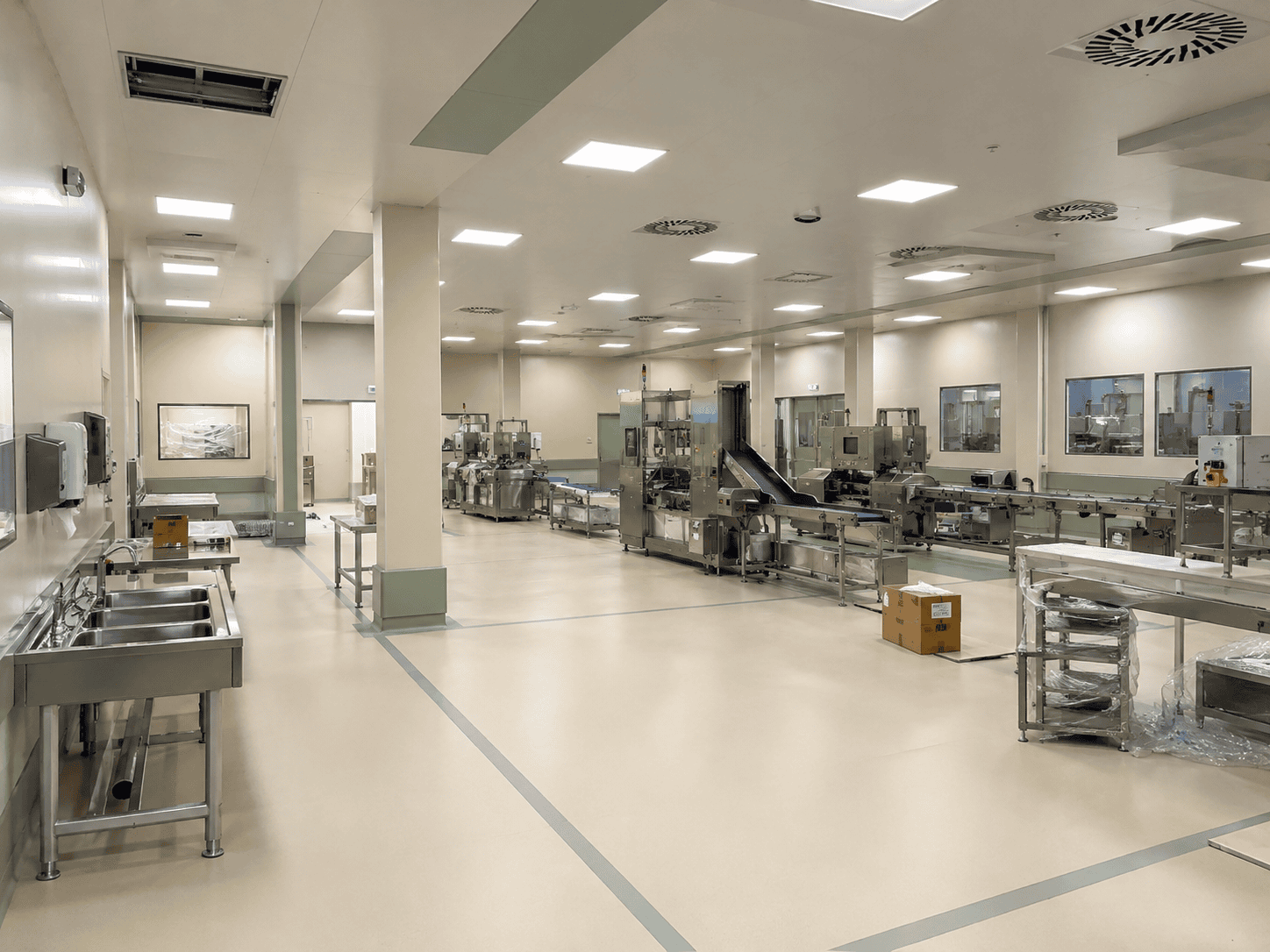

Food Cleanroom Project for Processing & Packaging
This food cleanroom project was designed for a food manufacturer focused on food processing, filling, packaging inspection, material transfer, equipment cleaning, and hygienic production. The client needed a controlled clean production environment to reduce contamination risk, improve workflow control, support food-grade manufacturing, and create a cleaner workshop for daily operation.
STJh Cleanroom provided a complete standard food cleanroom solution covering layout design, cleanroom enclosure, HVAC airflow planning, HEPA filtration, return air design, air shower entry, pass box transfer, food processing area, packaging inspection area, sanitation area, lighting, cleanroom doors, observation windows, and cleanroom wall system. The project was planned as a practical food production cleanroom, with the layout built around real equipment, operator movement, material flow, cleaning access, utility coordination, and long-term production use.
Project Overview
| Project Type | Standard Food Cleanroom Project |
|---|---|
| Country / Region | Singapore |
| Industry | Food Processing, Food Filling, Food Packaging, Hygienic Production |
| Cleanroom Area | 230㎡ |
| Cleanliness Requirement | Food-grade controlled clean production environment for processing, filling, packaging, material transfer, and sanitation support |
| Application | Food processing, filling, packaging inspection, ingredient transfer, equipment cleaning, and clean production workflow |
| Cleanroom Structure | Standard cleanroom wall system, cleanroom ceiling system, observation windows, cleanroom doors, sealed joints, and easy-clean surfaces |
| Air Filtration System | HEPA filtration system with cleanroom ceiling air supply layout and return air design |
| HVAC & Return Air System | Cleanroom HVAC system, return air grilles, ductwork planning, airflow balance, and maintenance access |
| Personnel Entry | Air shower system, gowning flow planning, cleanroom entry control, and personnel contamination reduction |
| Material Transfer | Pass box / transfer window system for cleaner movement of ingredients, packaging materials, tools, and semi-finished products |
| Production Area | Stainless-steel food processing and filling area with clean operator space, hygienic equipment layout, and controlled workflow |
| Packaging Area | Clean packaging and inspection area for sealed food trays, packaged products, conveyor operation, and quality checking |
| Sanitation Area | Dedicated equipment cleaning area with stainless wash stations, cleaning tools, drainage-friendly flooring, and sanitation support |
| Key Equipment | Cleanroom wall panels, cleanroom doors, observation windows, HEPA filters, air supply units, air shower, pass box, return air grilles, LED lighting, stainless production equipment, packaging conveyor, and sanitation fixtures |
| Project Goal | Improve food production hygiene, reduce contamination risk, organize personnel and material flow, support clean filling and packaging, and create a professional food-grade cleanroom environment |
Client Challenges
Before building the food cleanroom, the client faced several common production challenges. Personnel movement, material transfer, airborne particles, equipment cleaning, and mixed production functions all created hygiene and workflow risks during food processing and packaging. The client needed a standard cleanroom environment that could support food-grade operation, daily cleaning, and long-term production control.
Contamination risk: Dust, particles, personnel movement, and material transfer could introduce contamination into food processing and packaging areas.
Uncontrolled personnel entry: Operators needed a cleaner and more disciplined entry process before entering the food production area.
Material transfer risk: Ingredients, packaging materials, tools, and semi-finished products needed a cleaner transfer route between different zones.
Poor airflow organization: Without a properly planned air supply and return air system, particles could move through the workshop in an uncontrolled way.
Mixed production functions: Processing, filling, packaging, inspection, and cleaning activities needed clearer zoning to reduce workflow conflict.
Cleaning difficulty: Food production tools, containers, and removable machine parts required a dedicated sanitation space for daily cleaning and maintenance.
Cleanroom Solution
STJh Cleanroom designed the project based on the client’s food production process, hygiene control requirements, equipment layout, operator movement, material flow, cleaning process, and long-term operation needs. The cleanroom was divided into production areas, packaging areas, entry areas, material transfer zones, sanitation zones, and HVAC service areas.
The project used a standard cleanroom system including cleanroom wall panels, cleanroom ceiling, large observation windows, cleanroom doors, HEPA filtration, ceiling air supply, return air design, air shower entry, pass box transfer, stainless-steel production equipment, packaging conveyor, and sanitation facilities. The design focused on both cleanliness and production efficiency, helping the client improve daily operation instead of simply building a clean-looking room.
Key Cleanroom Systems

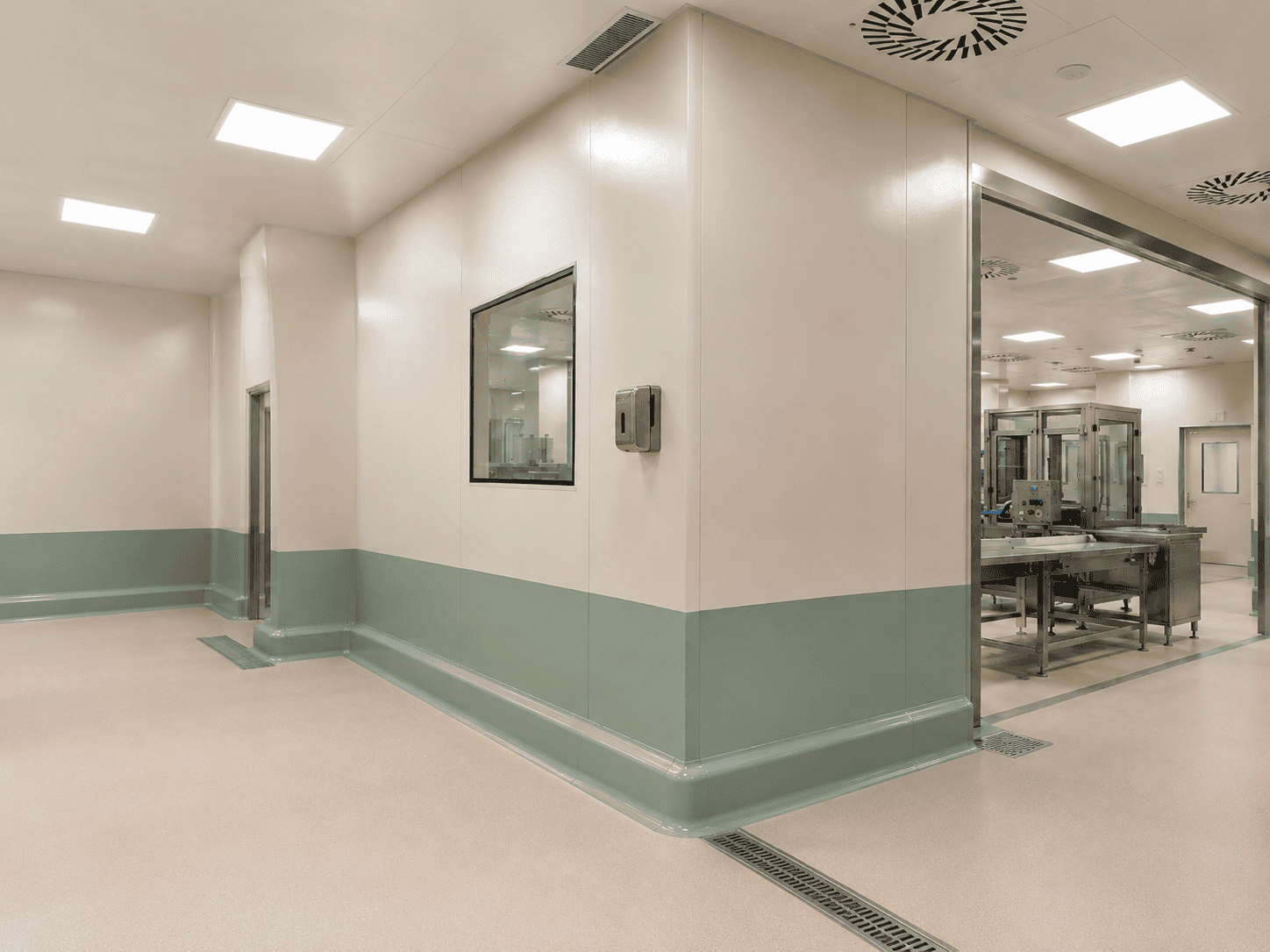

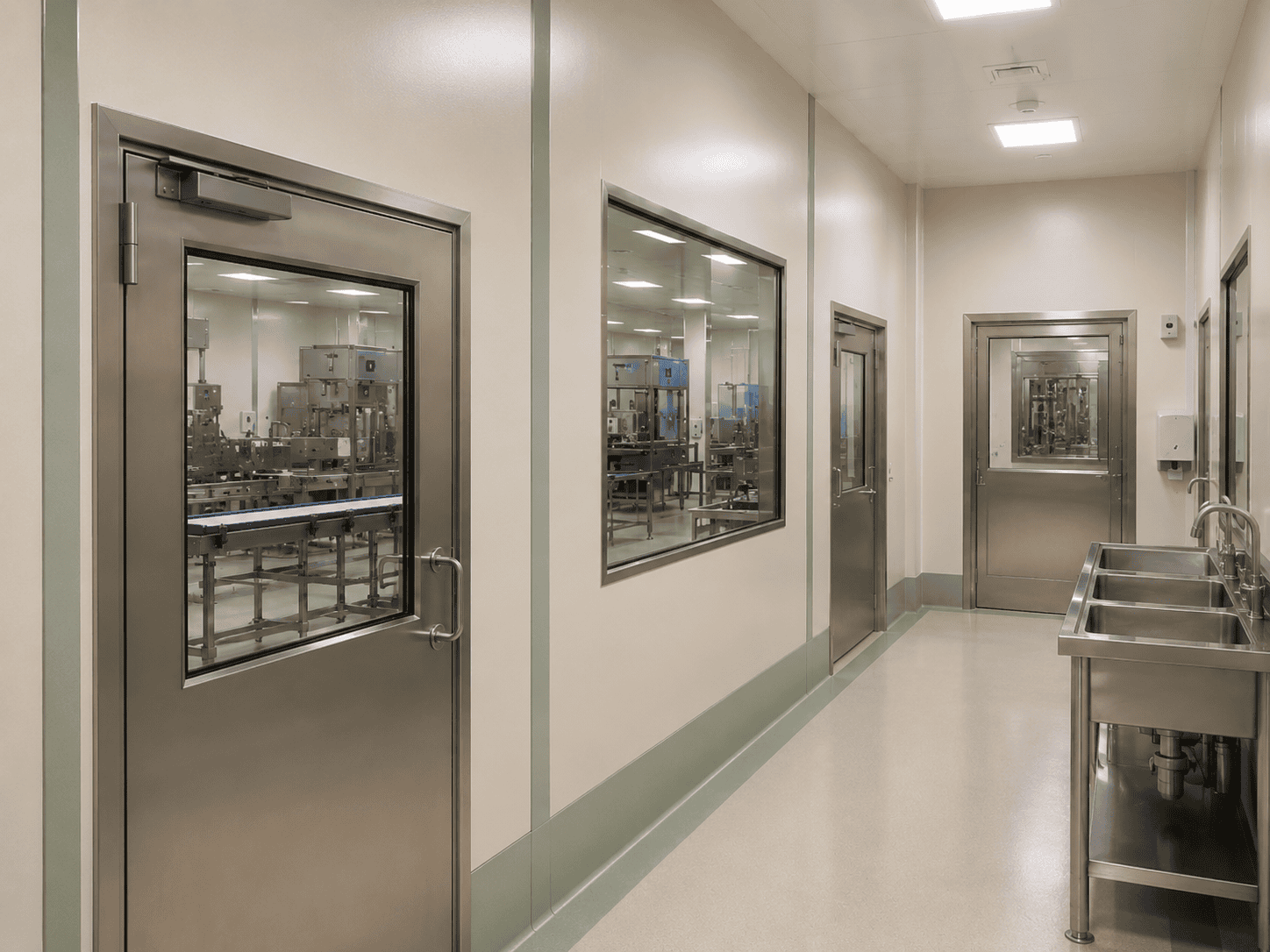

1. Cleanroom Enclosure System
The cleanroom uses a standard cleanroom enclosure system with cleanroom wall panels, cleanroom ceiling, sealed joints, cleanroom doors, and large observation windows. The smooth and bright structure helps create a professional food-grade workshop while making daily cleaning easier.
Cleanroom wall panel system
Cleanroom ceiling and sealed joints
Large observation windows
Cleanroom doors and easy-clean surfaces
2. Air Shower & Personnel Entry
The air shower system helps remove loose particles from personnel before they enter the food production area. Combined with gowning flow planning and cleanroom entry control, it improves personnel discipline and reduces people-borne contamination risk.
Personnel entry control
Air shower particle removal
Improved gowning discipline
Cleaner movement into production areas

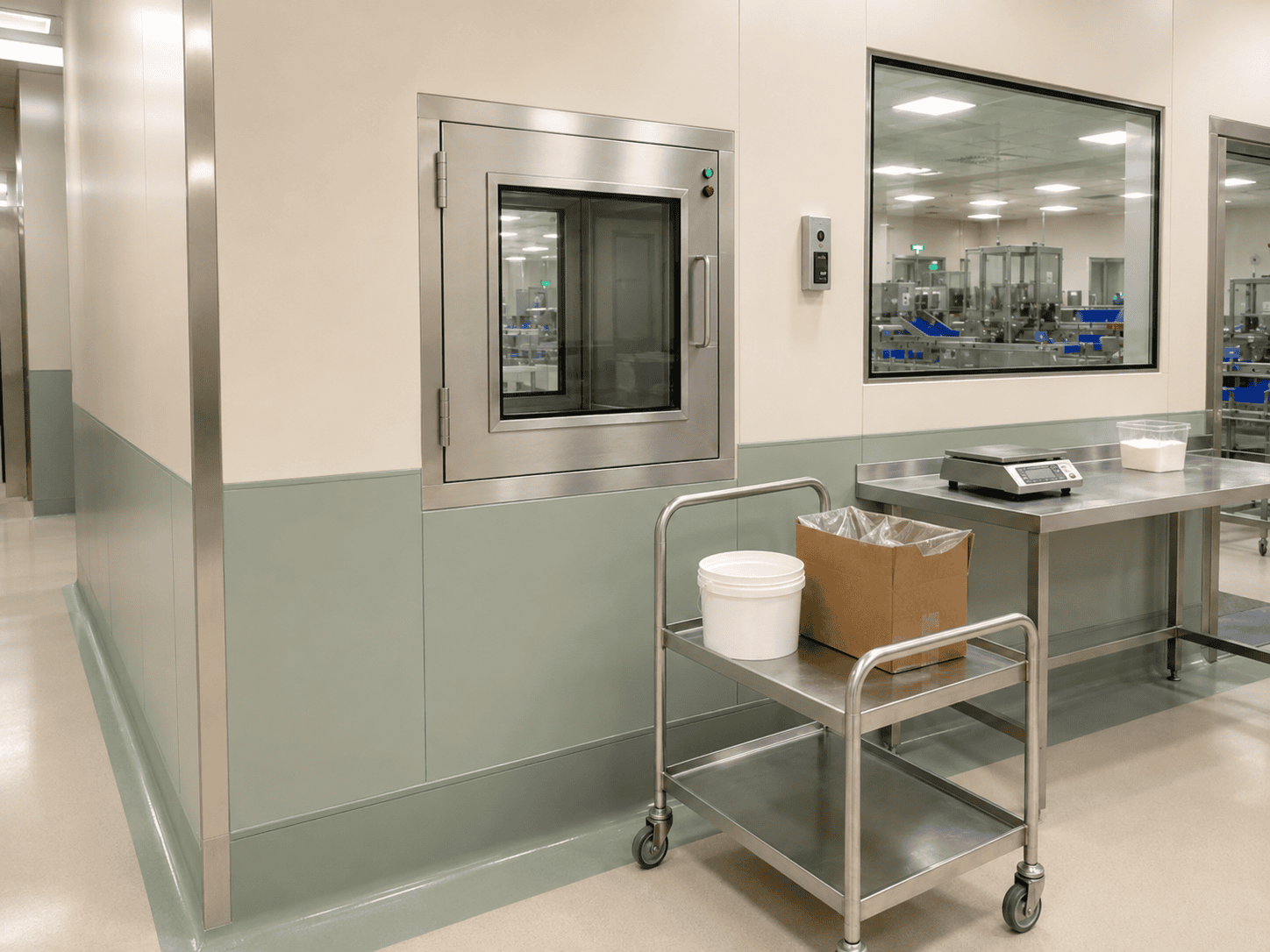

3. Pass Box & Material Transfer
The pass box system allows food ingredients, packaging materials, tools, and semi-finished products to move between zones with less contamination risk. It reduces unnecessary door opening and helps protect airflow stability in the cleanroom.
Cleaner ingredient transfer
Reduced door opening frequency
Better separation between clean and support areas
Improved material movement efficiency
4. HEPA Filtration System
The cleanroom uses HEPA filtration and ceiling air supply to reduce airborne particles and support cleaner production conditions. The air supply layout helps maintain a more stable environment for food processing, filling, and packaging.
HEPA filtration for particle control
Ceiling air supply layout
Cleaner air supply over production zones
More stable cleanroom operation
5. HVAC & Return Air System
The HVAC and return air system was planned to support airflow balance, air circulation, and environmental stability. Return air grilles, air handling equipment, ductwork, and service access were coordinated for easier operation and maintenance.
Cleanroom HVAC coordination
Return air grilles and airflow balance
Ductwork and service area planning
Better support for stable cleanroom performance

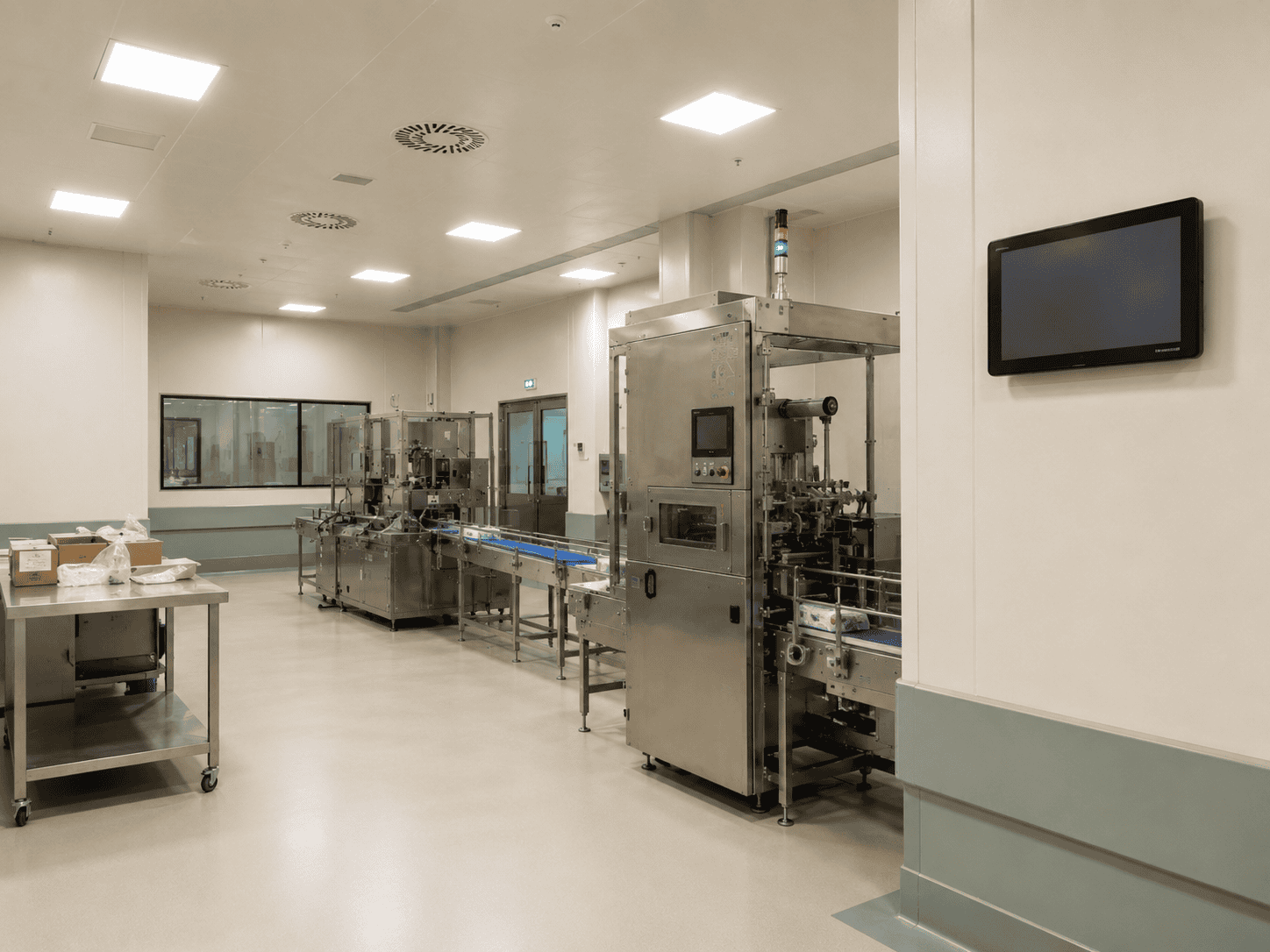

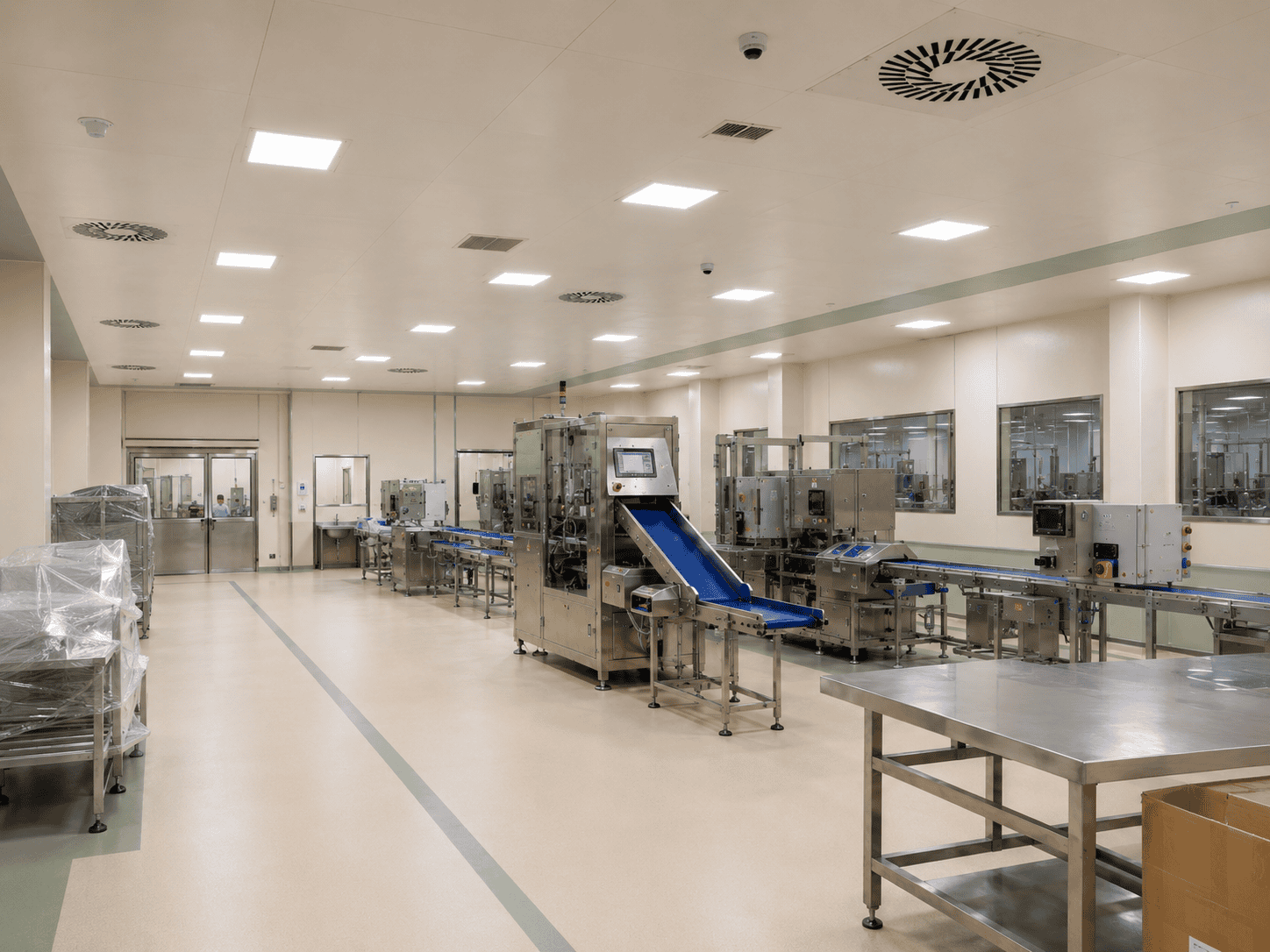

6. Food Processing & Filling Area
The production area was planned for food processing and filling operations. Stainless-steel machinery, food-grade piping, clean operator space, and organized equipment layout help support hygienic production and efficient workflow.
Stainless-steel processing equipment
Clean filling operation area
Hygienic equipment layout
Organized food production workflow

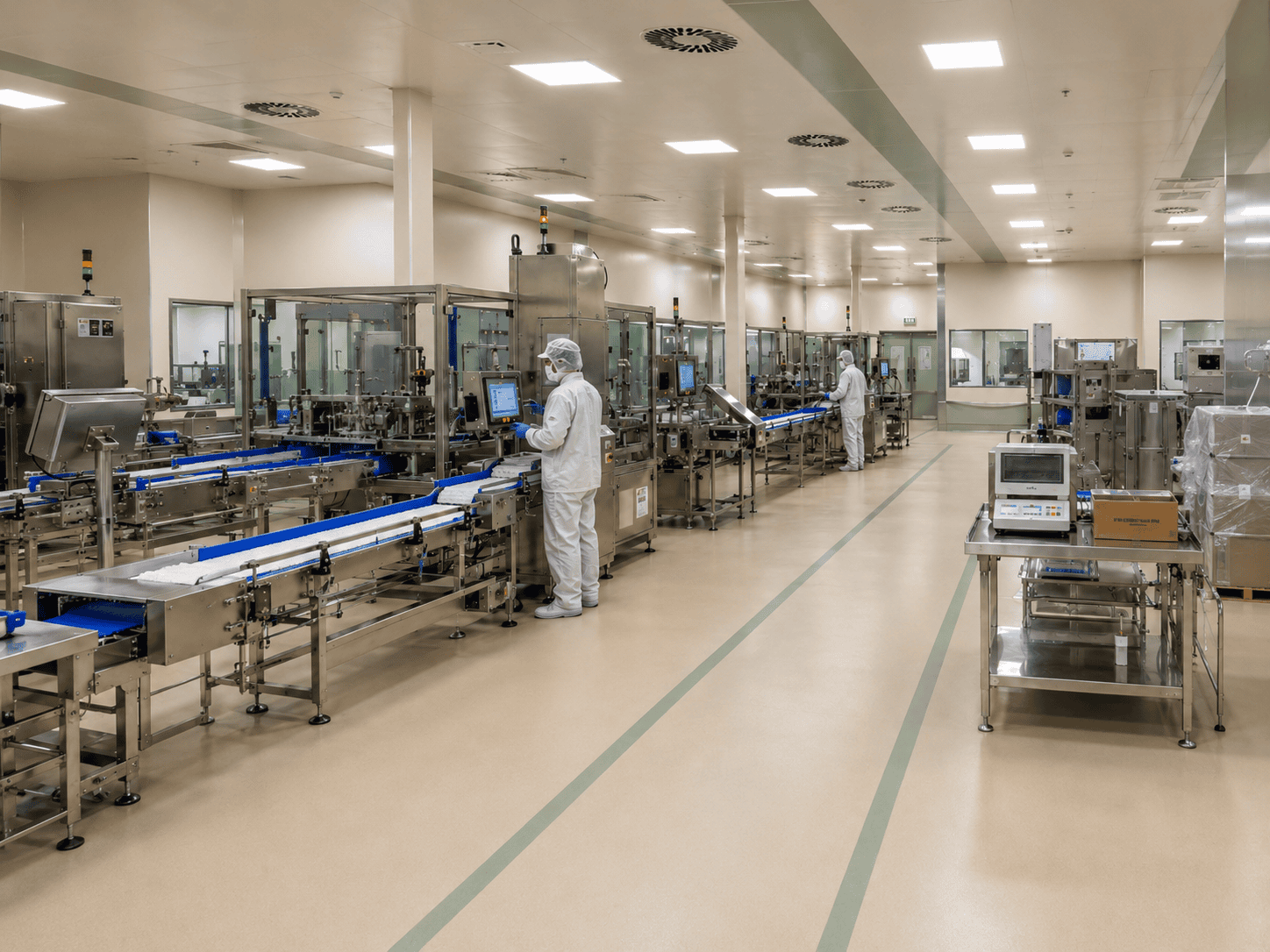

7. Clean Packaging & Inspection Area
The packaging area supports sealed food trays, packaged products, conveyor operation, and quality inspection. The bright and clean layout helps operators check products more efficiently and keeps final packaging activities separate from processing operations.
Clean packaging conveyor
Sealed food tray handling
Product inspection workstations
Better separation between production and packaging

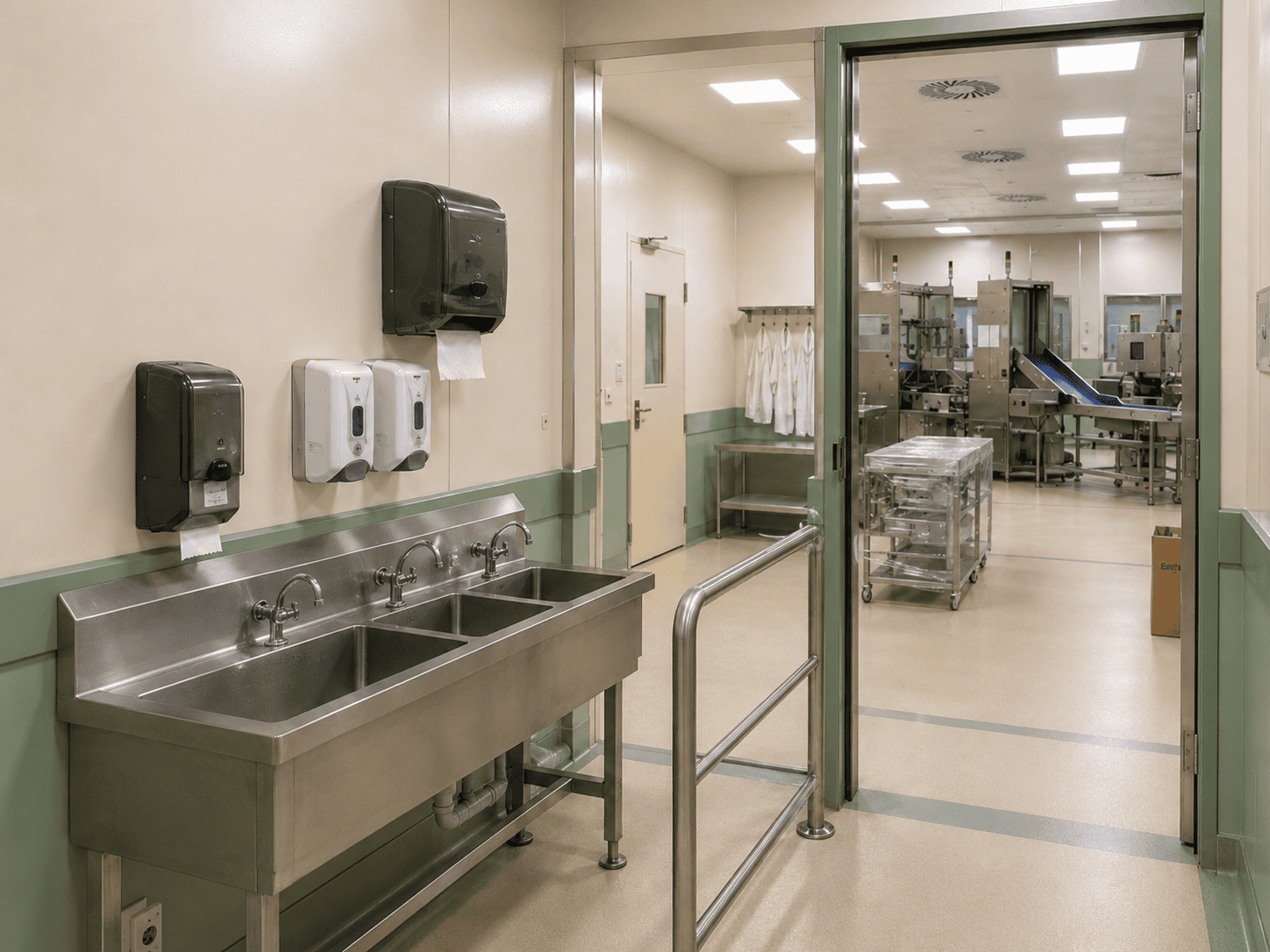

8. Equipment Cleaning & Sanitation Area
A dedicated sanitation area was included for cleaning food production tools, vessels, removable machine parts, and daily-use equipment. Stainless wash stations, cleaning tools, hygienic flooring, and floor drainage help the client maintain better daily sanitation control.
Stainless-steel wash stations
Dedicated equipment cleaning area
Drainage-friendly hygienic flooring
Better sanitation and maintenance control
Problems Solved for the Client
| Problem | Cleanroom Solution | Result |
|---|---|---|
| Dust and airborne particles affected food production hygiene | HEPA filtration, ceiling air supply, and return air design | Cleaner production environment and reduced particle risk |
| Personnel movement created contamination risk | Air shower system and controlled personnel entry planning | Cleaner personnel flow before entering the production area |
| Material transfer between zones was not well controlled | Pass box / transfer window system | Cleaner ingredient, packaging material, and tool transfer |
| Processing, packaging, and cleaning activities were mixed | Functional zoning for production, packaging, sanitation, and service areas | More organized workflow and reduced operational conflict |
| Equipment cleaning lacked a dedicated hygienic space | Stainless sanitation area with wash stations, cleaning tools, and floor drainage | Easier daily cleaning, maintenance, and sanitation management |
| The workshop needed a more professional factory image | Cleanroom wall panels, observation windows, bright lighting, and cleanroom doors | Cleaner visual presentation for customer visits, audits, and internal management |
Project Result
After completion, the client received a functional food cleanroom designed for cleaner production, organized workflow, and long-term food factory operation. The cleanroom supports food processing, filling, packaging inspection, ingredient transfer, equipment cleaning, and personnel entry control within a more controlled environment.
The final cleanroom layout provides clearer zoning, cleaner personnel and material flow, better air filtration support, improved sanitation management, and a more professional workshop image. For food manufacturers, this type of standard food cleanroom is not only a controlled production space, but also an important part of food safety management, quality control, and brand presentation.
Why Choose STJh Cleanroom for Food Cleanroom Projects?
Custom cleanroom design based on real food production processes
Turnkey cleanroom project support from design to installation
Food cleanroom solutions for processing, filling, packaging, and sanitation areas
Integrated HEPA filtration, HVAC, return air, air shower, pass box, and cleanroom enclosure systems
Cleanroom layout planning for equipment, operators, materials, cleaning routes, and utilities
Suitable for both new food cleanroom construction and cleanroom upgrade projects
Food Cleanroom Applications
Food processing cleanroom
Food filling cleanroom
Food packaging cleanroom
Beverage filling cleanroom
Sauce and seasoning production cleanroom
Bakery product packaging cleanroom
Ready-to-eat food packaging cleanroom
Food equipment cleaning and sanitation area
Need a Food Cleanroom for Your Production?
If your food production process is affected by dust, uncontrolled personnel entry, poor material transfer, mixed workflow, or cleaning difficulties, a food cleanroom can help you create a cleaner, more organized, and more reliable production environment. STJh Cleanroom can provide layout design, equipment selection, cleanroom materials, installation guidance, and turnkey project support based on your production needs.
Contact us to get a custom food cleanroom design, equipment list, and project quotation.
