Pharmaceutical GMP Modular Cleanroom Project
This pharmaceutical GMP modular cleanroom project was designed for a regulated pharmaceutical production facility in Singapore. The client needed a clean, compliant, and well-organized modular cleanroom system for dispensing, material transfer, sterile processing, filling, packaging, in-process testing, and final inspection operations.
STJh Cleanroom provided a complete pharmaceutical GMP modular cleanroom solution including modular cleanroom layout design, cleanroom wall panels, glass observation windows, sealed cleanroom doors, personnel entry area, gowning room, material transfer system, stainless steel process equipment integration, HEPA filtration, controlled airflow, clean corridor planning, pass box integration, lighting system, and installation guidance.
The project was designed around pharmaceutical GMP production workflow. The cleanroom layout separates personnel movement, material transfer, production operation, in-process testing, packaging, and equipment access. The modular structure provides a bright, clean, and controlled production environment while allowing the client to manage hygiene, visibility, workflow, and future maintenance more efficiently.
Project Overview
| Project Type | Pharmaceutical GMP Modular Cleanroom Project |
|---|---|
| Project Location | Singapore |
| Industry | Pharmaceutical Manufacturing, GMP Production, Sterile Processing, Filling, Packaging, and Quality Control |
| Cleanroom Area | Approximately 320–420㎡ |
| Cleanliness Class | ISO 7–ISO 8 clean environment, with local high-cleanliness work zones configured according to process requirements |
| Application | Pharmaceutical dispensing, material transfer, sterile processing, liquid preparation, filling operation, product packaging, in-process testing, and final inspection |
| Project Structure | Multi-room GMP modular cleanroom system with clean corridors, glass partitions, sealed doors, pass box area, stainless steel workstations, and pharmaceutical process equipment |
| Cleanroom Color Design | Warm white modular panels, stainless steel equipment, silver aluminum framing, transparent glass windows, soft ivory surfaces, and muted green floor border accents |
| Modular Structure | Prefabricated cleanroom wall panels, aluminum or stainless steel frames, glass observation windows, sealed cleanroom doors, smooth internal corners, and easy-clean surfaces |
| Personnel Flow | Gowning area, changing benches, storage lockers, personnel entry doors, clean corridor access, and controlled movement into production rooms |
| Material Flow | Pass box system, stainless steel trolleys, material staging area, transfer cabinet, clean corridor route, and separated material handling process |
| Production System | Stainless steel tanks, dispensing equipment, filling machinery, process piping, clean worktables, product trays, and controlled production work zones |
| Air Filtration System | HEPA filtration, FFU or ceiling air supply configuration, return air planning, pressure control, and clean airflow design for pharmaceutical production |
| Lighting System | High-brightness cleanroom LED lighting for production operation, equipment monitoring, inspection, packaging, and QC testing |
| Main Equipment | HEPA filters, FFU units, cleanroom doors, glass windows, pass boxes, stainless steel trolleys, dispensing stations, filling equipment, stainless tanks, clean workbenches, QC instruments, and environmental monitoring devices |
| Project Goal | Build a clean, hygienic, visible, and GMP-oriented modular production environment for pharmaceutical processing, packaging, testing, and controlled material transfer |
Project Background
The client required a pharmaceutical production cleanroom that could support controlled dispensing, process preparation, sterile handling, packaging, and quality control. The existing production space needed to be upgraded into a cleaner and more organized GMP-style environment with separated functional rooms and improved visibility.
Pharmaceutical production requires strict control of particles, personnel movement, material transfer, equipment hygiene, and cleaning procedures. A general workshop could not provide the level of separation, air cleanliness, and process organization required for regulated production. The client needed a modular cleanroom system that could be installed efficiently while maintaining a professional GMP appearance and practical production workflow.
STJh Cleanroom designed the project with modular cleanroom panels, transparent glass partitions, stainless steel process equipment, clean doors, pass box systems, controlled corridors, and bright lighting. The final cleanroom allows operators, supervisors, and quality teams to manage the production process more clearly while reducing unnecessary contamination risk.
Client Pain Points
Production zoning was not clear: Dispensing, processing, packaging, testing, and material transfer needed to be separated into controlled areas.
Material transfer required better control: Raw materials, containers, tools, and finished products needed a cleaner transfer route between rooms.
Personnel entry needed standardization: Operators needed a proper gowning and entry process before entering the production cleanroom.
Process equipment required clean integration: Stainless steel tanks, filling machines, dispensing stations, and trolleys needed to be arranged inside the cleanroom without blocking workflow.
Visibility and supervision were limited: The client needed glass partitions so production and quality teams could observe operations without frequent entry.
Cleanroom surfaces needed to be easy to clean: Walls, doors, windows, ceilings, and work areas had to support routine cleaning and hygiene control.
Future maintenance and adjustment were important: The client wanted a modular structure that could support equipment access, room maintenance, and future process changes.
Cleanroom Solution
STJh Cleanroom provided a multi-room pharmaceutical GMP modular cleanroom solution based on the client’s production process, equipment layout, personnel flow, material route, cleanliness requirement, and available factory space. The cleanroom includes clean corridors, process rooms, dispensing zones, filling rooms, pass box areas, packaging workstations, and QC testing spaces.
The modular cleanroom uses warm white cleanroom wall panels, aluminum or stainless steel framing, large glass observation windows, and sealed cleanroom doors. This design creates a clean and professional pharmaceutical production environment while allowing better visibility and process supervision.
Stainless steel tanks, filling machines, dispensing equipment, clean worktables, trolleys, and testing instruments were arranged inside the cleanroom according to actual operation needs. The design helps separate different GMP functions and makes daily production, cleaning, monitoring, and quality control more efficient.
Key Cleanroom Systems

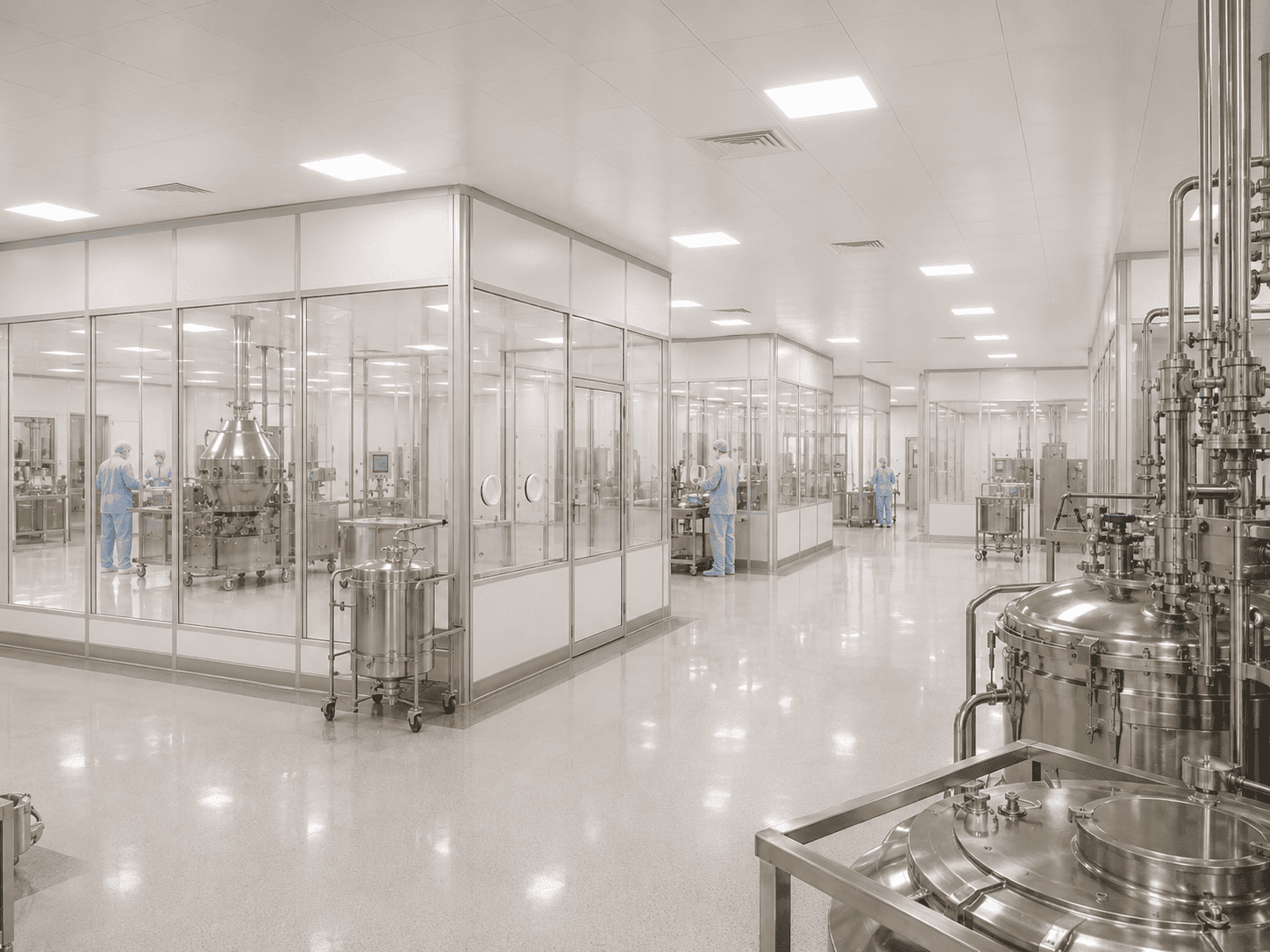

1. Modular Wall And Glass Partition System

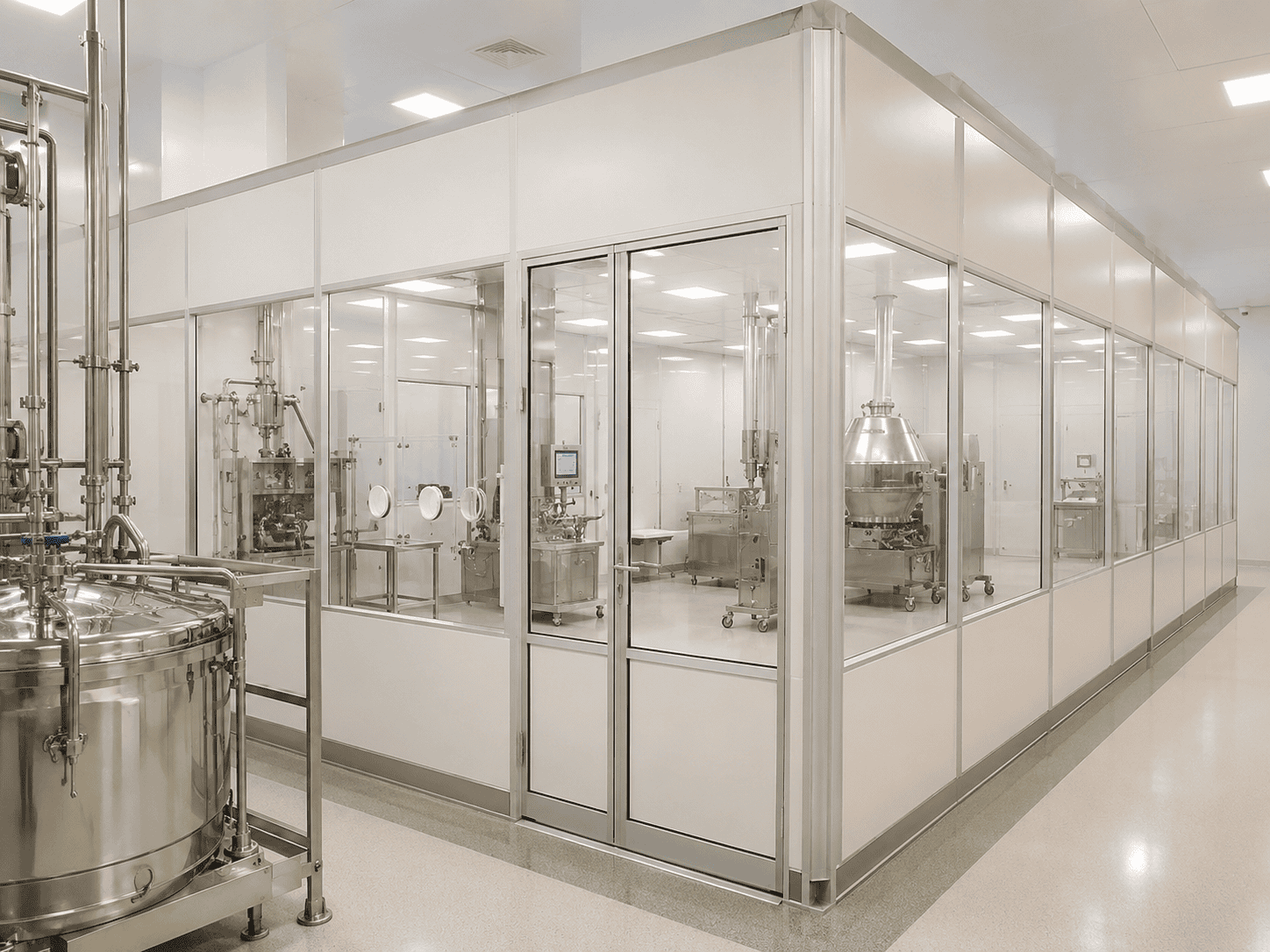

The cleanroom uses prefabricated wall panels with smooth surfaces and sealed joints. Large glass windows were installed along production rooms and corridors to improve visibility and allow supervisors to observe the process from outside.
Warm white modular cleanroom wall panels
Aluminum or stainless steel frame structure
Large glass observation windows
Smooth surfaces for easier cleaning and maintenance
2. Personnel Gowning And Entry System

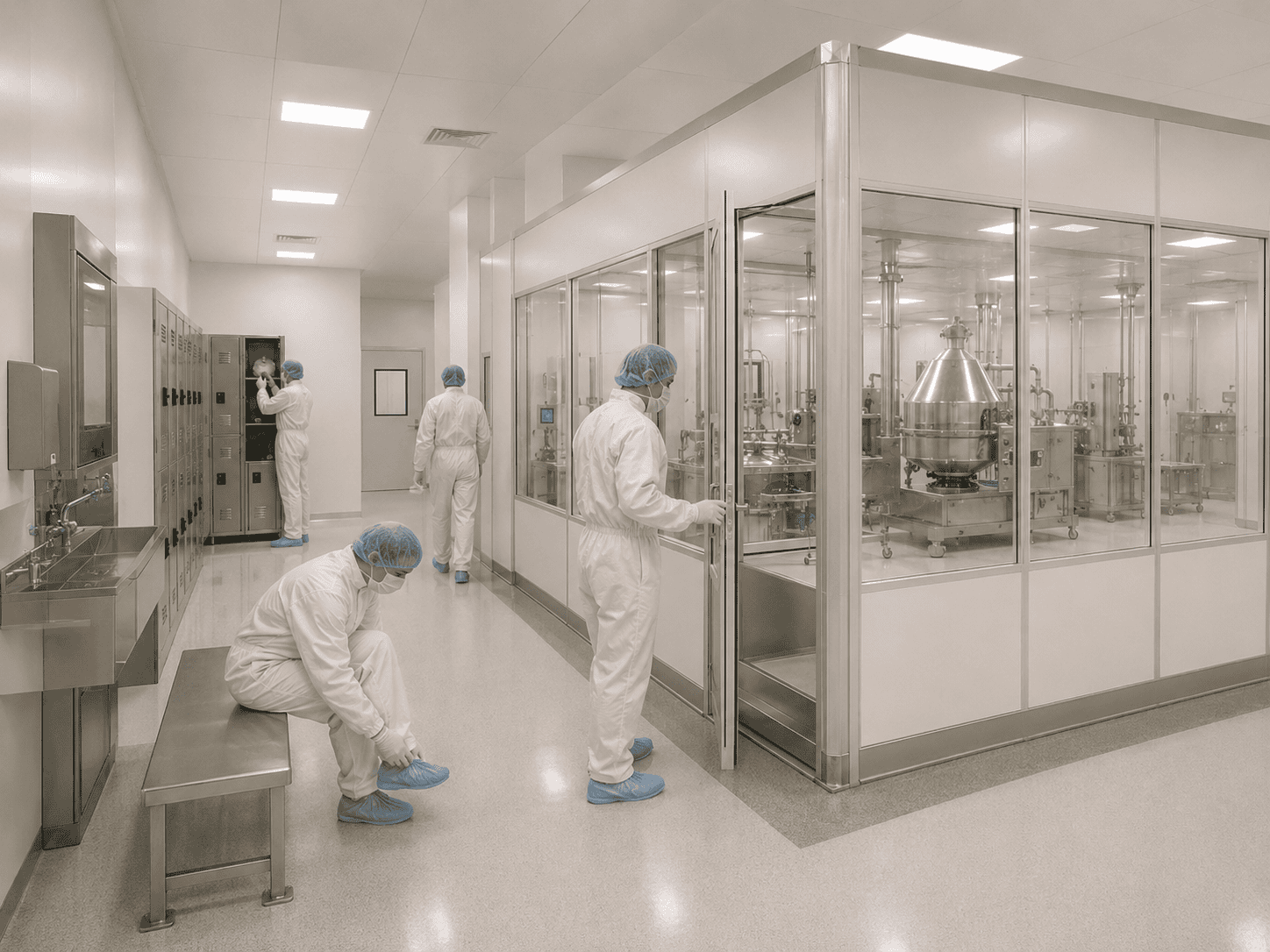

The personnel entry area includes changing benches, lockers, cleanroom doors, and controlled access points. This area supports orderly gowning before operators enter the GMP cleanroom production zone.
Changing benches and personnel preparation space
Locker area for garments and personal item separation
Controlled cleanroom entry route
Reduced risk of contamination from uncontrolled personnel movement
3. Clean Corridor System

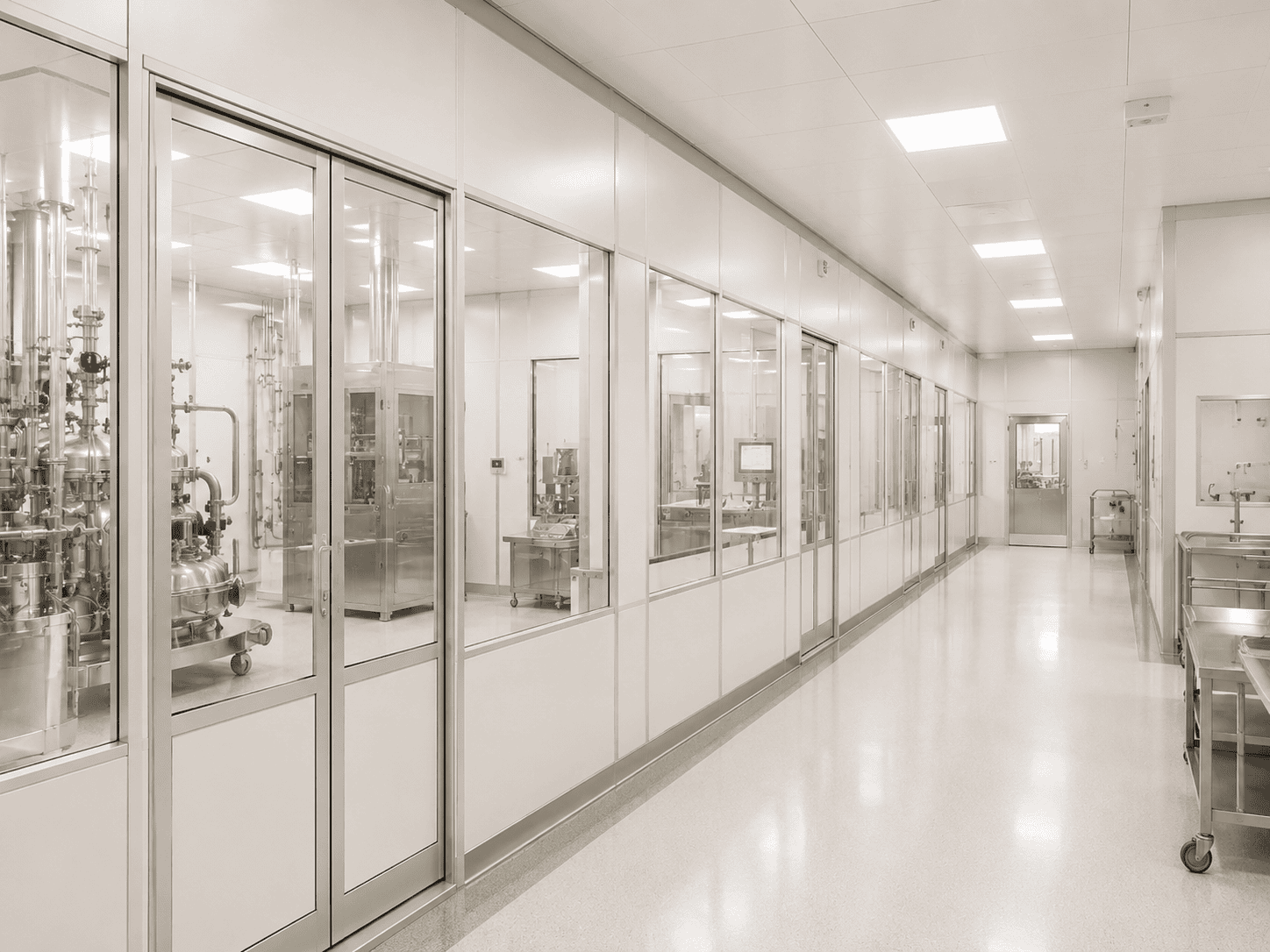

A clean corridor was planned to connect different modular rooms, including processing, filling, packaging, material transfer, and QC areas. The corridor helps organize personnel and material movement while keeping the production layout clear.
Clear circulation route between cleanroom zones
Glass walls for better visibility
Smooth floor and wall transitions
Practical access for operators, carts, and equipment movement
4. Material Transfer And Pass Box System

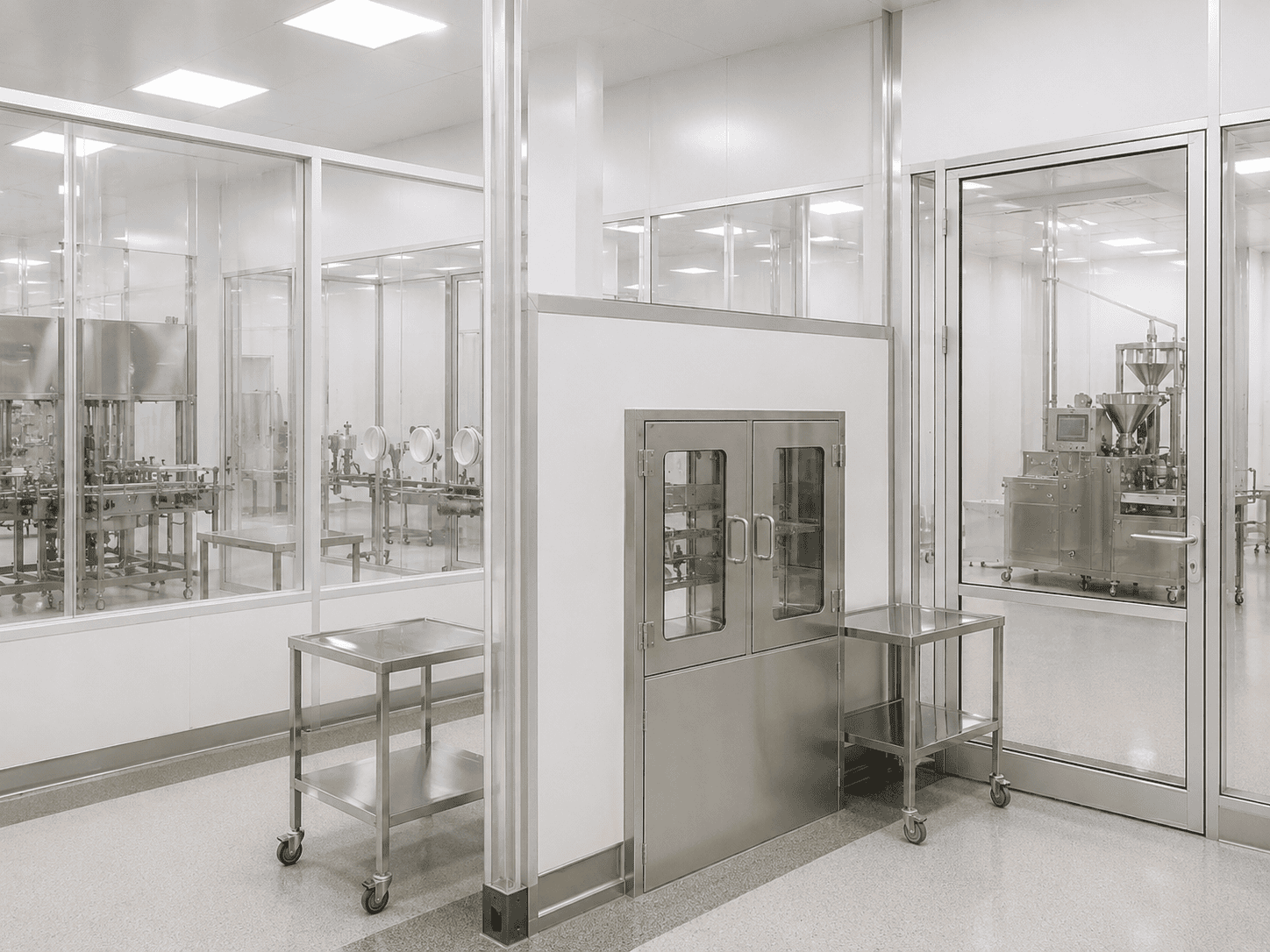

Material transfer was supported by integrated pass boxes, stainless steel transfer cabinets, and clean trolleys. This allows materials, tools, and packaged products to move between areas with less direct personnel traffic.
Stainless steel pass box system
Double-door material transfer design
Stainless steel trolleys for clean material handling
Better separation between clean and general areas
5. Pharmaceutical Processing System

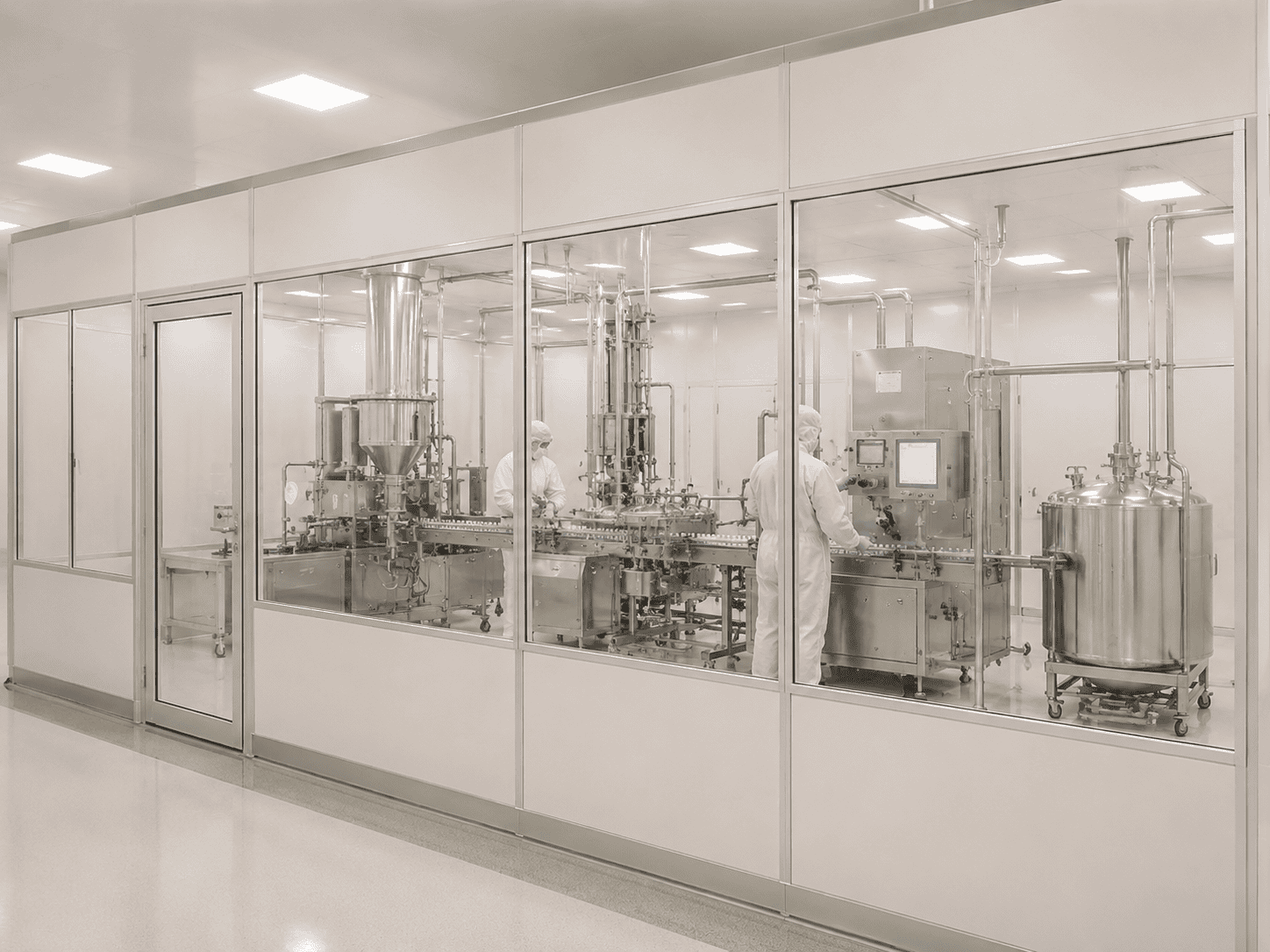

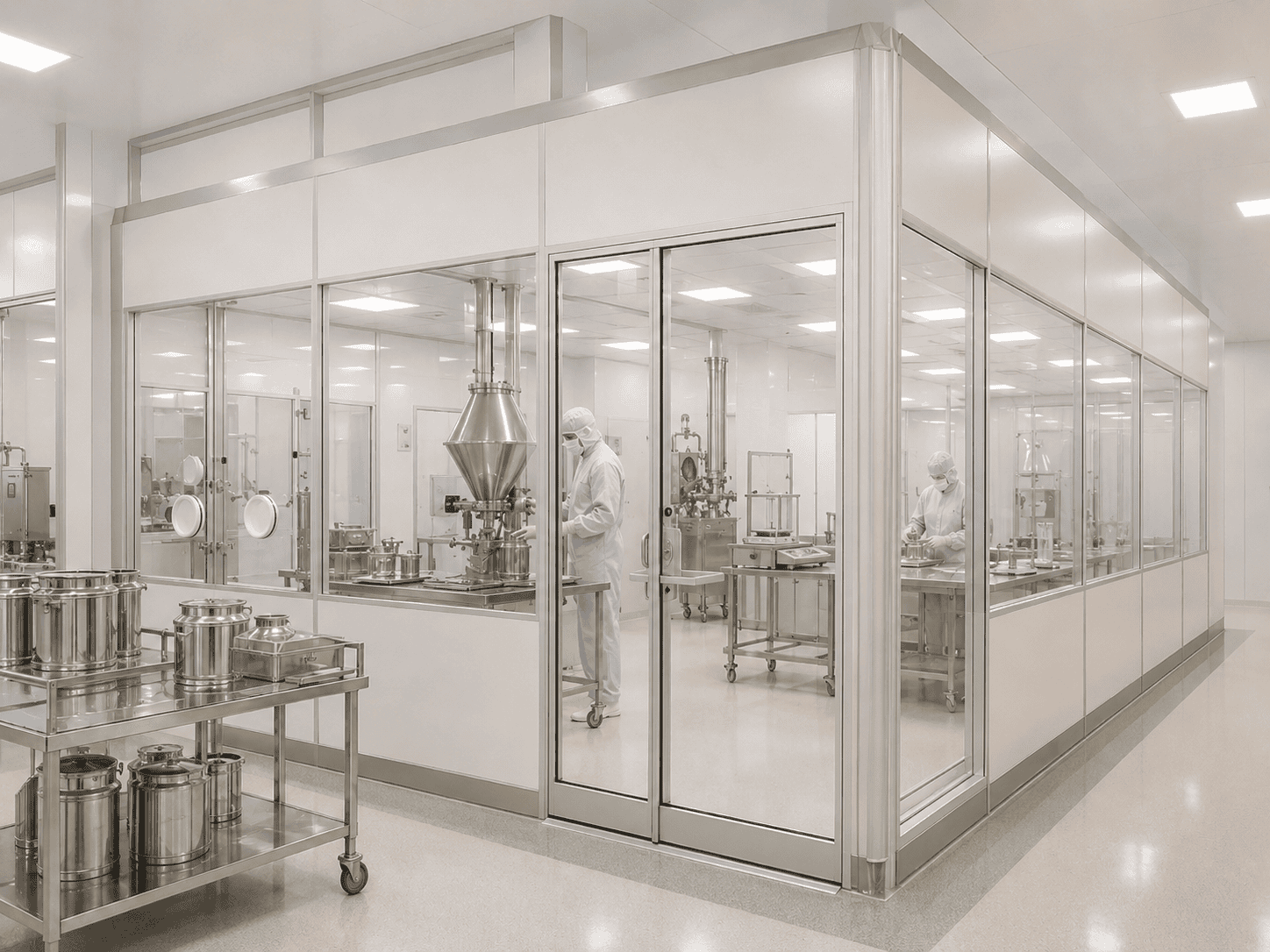

The production rooms were equipped with stainless steel process equipment, including tanks, dispensing stations, filling machinery, process piping, and clean worktables. The layout keeps equipment accessible while maintaining a clean working environment.
Stainless steel tanks and process vessels
Dispensing and filling equipment
Clean process piping and equipment connections
Organized production room layout for GMP operation
6. Packaging And Final Inspection System

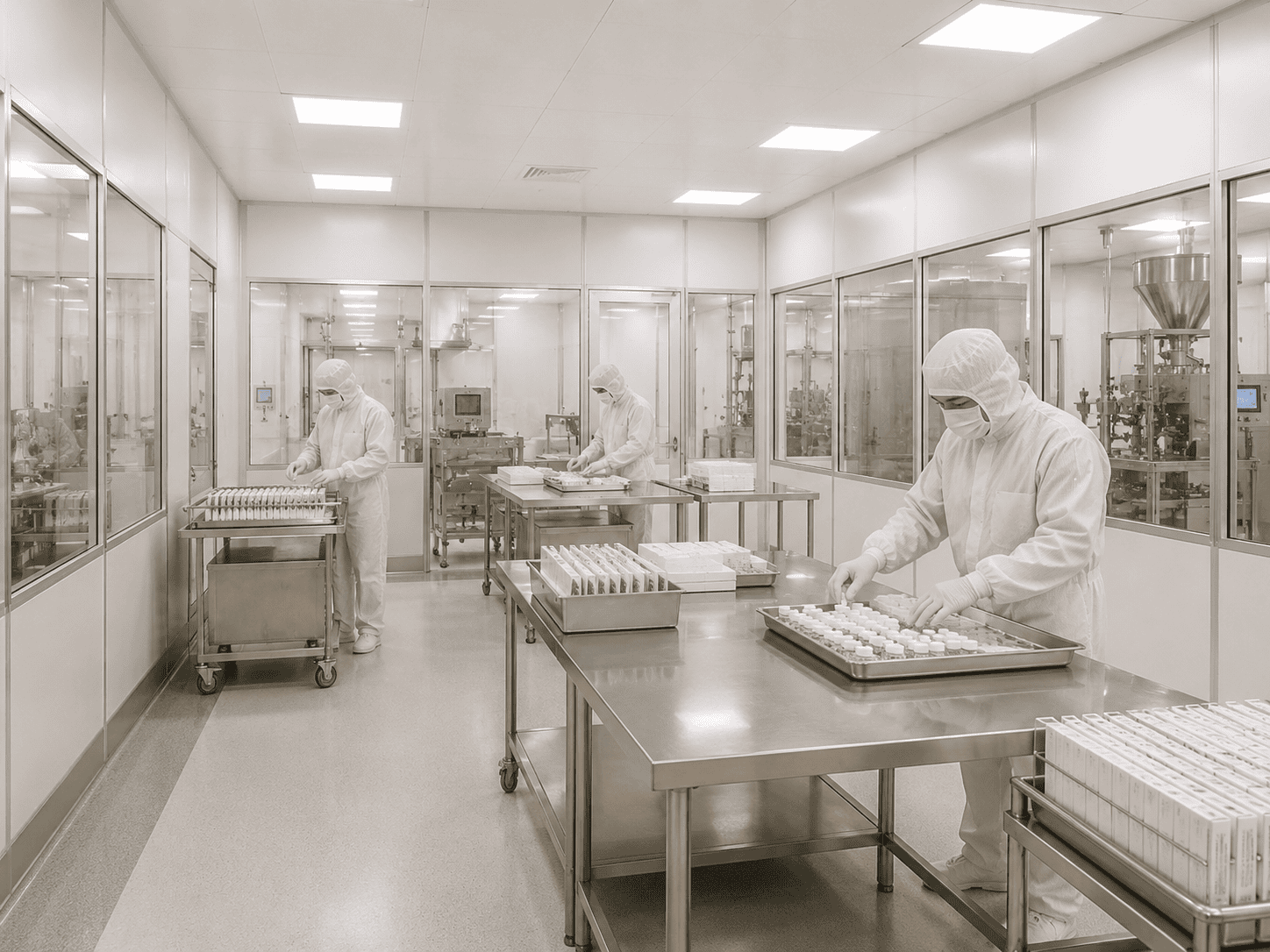

The packaging and inspection area includes stainless steel worktables, product trays, clean carts, and operator workstations. This area supports product handling, packaging preparation, visual checking, and final inspection before transfer.
Stainless steel packaging tables
Organized trays and product containers
Clean workstation arrangement
Suitable for final inspection and controlled product handling
7. QC Laboratory And In-Process Testing Area

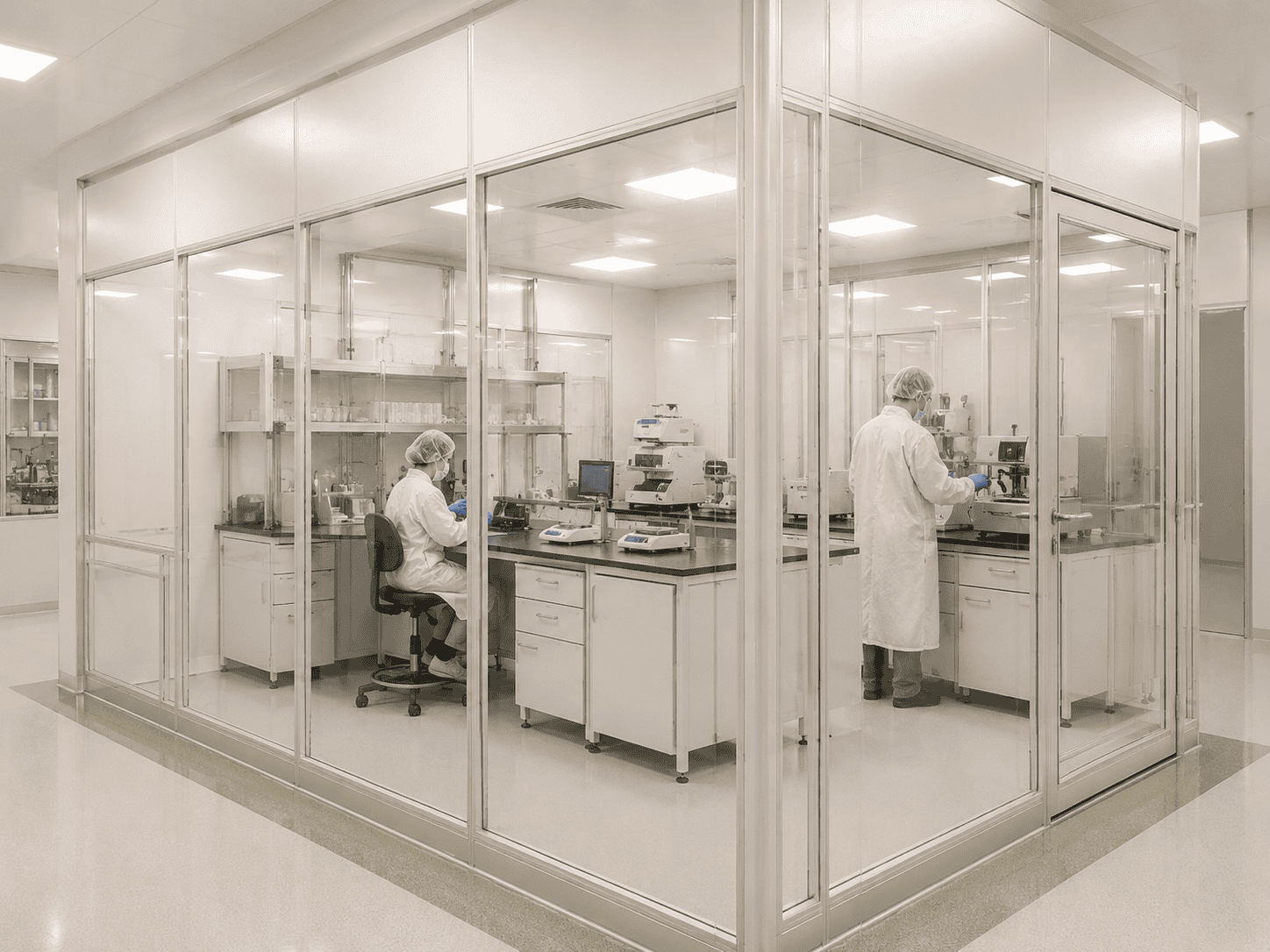

A small QC testing room was integrated into the modular cleanroom system. The space includes laboratory benches, testing instruments, storage cabinets, and clean observation windows for in-process quality control.
Laboratory benches and testing workstations
Analytical and inspection instruments
Clean glass-enclosed testing area
Support for in-process quality checks
8. HEPA Filtration And Airflow System
The cleanroom air system can be configured with FFU units, HEPA filters, ceiling air supply, return air paths, and pressure control according to the required cleanliness level and process risk. The system helps maintain a cleaner and more stable pharmaceutical production environment.
FFU and HEPA filter configuration
Controlled clean air supply
Return air and pressure planning
Suitable for ISO 7–ISO 8 pharmaceutical cleanroom areas
Problems Solved for the Client
| Problem | Cleanroom Solution | Result |
|---|---|---|
| Pharmaceutical production areas were not clearly separated | Multi-room modular cleanroom layout with clean corridors and functional zones | Better separation between dispensing, processing, packaging, testing, and transfer areas |
| Personnel entry needed better contamination control | Gowning area, lockers, changing benches, and controlled cleanroom entry route | More standardized personnel preparation before entering GMP production areas |
| Materials needed cleaner transfer between rooms | Pass box system, transfer cabinets, stainless trolleys, and clean staging areas | Reduced unnecessary personnel movement and improved material flow control |
| Process equipment required clean and visible integration | Stainless tanks, filling machines, dispensing equipment, and process piping arranged inside modular rooms | Practical production layout with clear equipment access and cleaner operation environment |
| Supervisors needed to observe operation without entering frequently | Large glass observation windows and transparent modular partitions | Improved process visibility and reduced unnecessary cleanroom entry |
| Packaging and inspection needed a cleaner workspace | Stainless steel worktables, organized trays, clean carts, and bright lighting | Cleaner product handling and more organized final inspection process |
| The facility needed a cleanroom system that could support future changes | Modular wall panels, framed glass partitions, and flexible room layout | Easier maintenance, adjustment, and future production upgrade |
Project Result
After completion, the client received a pharmaceutical GMP modular cleanroom system of approximately 320–420㎡. The cleanroom provides controlled areas for personnel entry, material transfer, dispensing, sterile processing, filling, packaging, QC testing, and final inspection.
The project improved production zoning, cleanroom visibility, operator workflow, material transfer, and equipment organization. The modular wall panels, glass partitions, sealed doors, stainless steel equipment, pass boxes, and clean corridors create a practical GMP-oriented production environment.
Compared with a general production workshop, this modular cleanroom system provides better hygiene control, cleaner material handling, improved supervision, and a more professional environment for pharmaceutical manufacturing.
