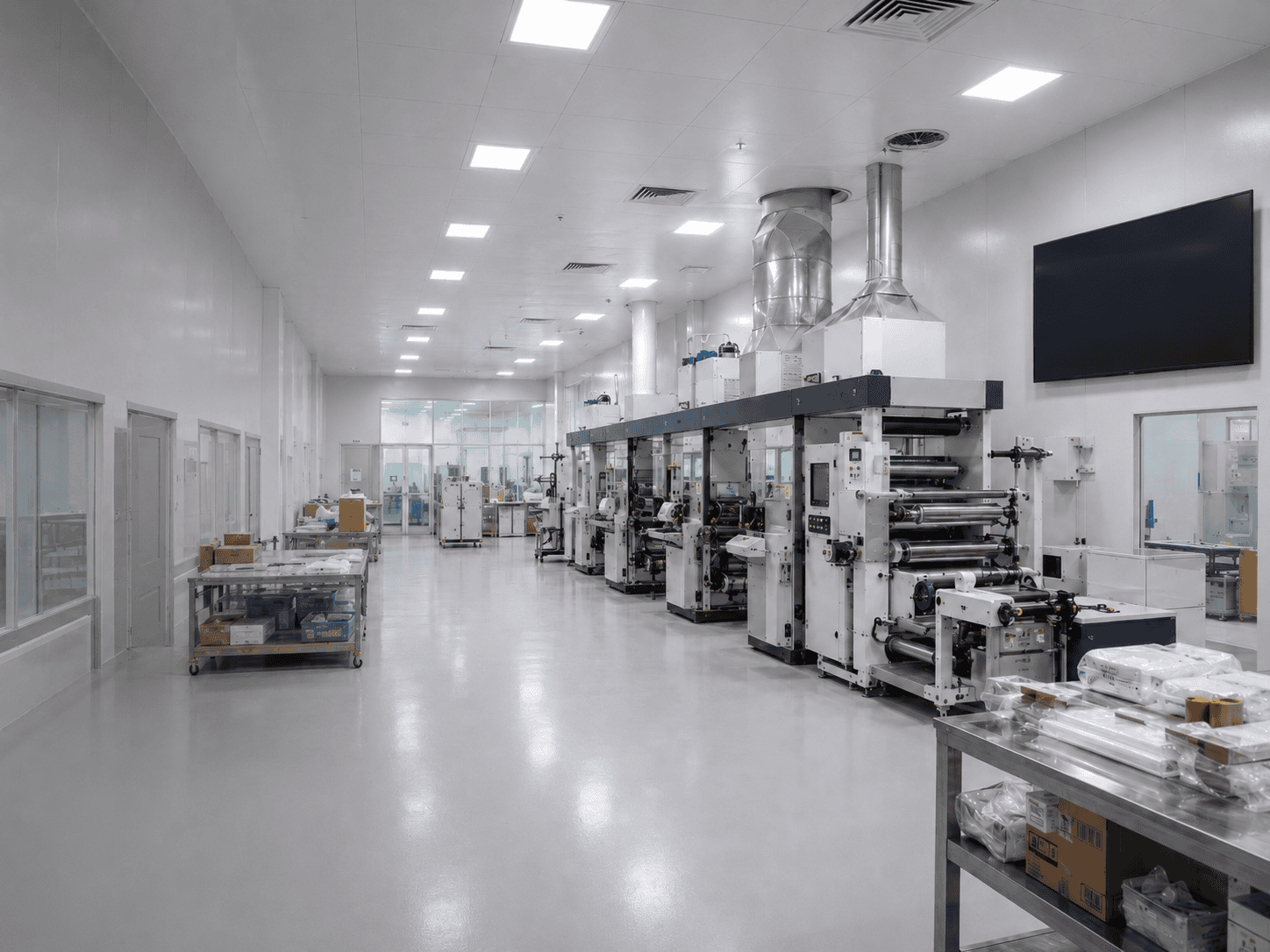

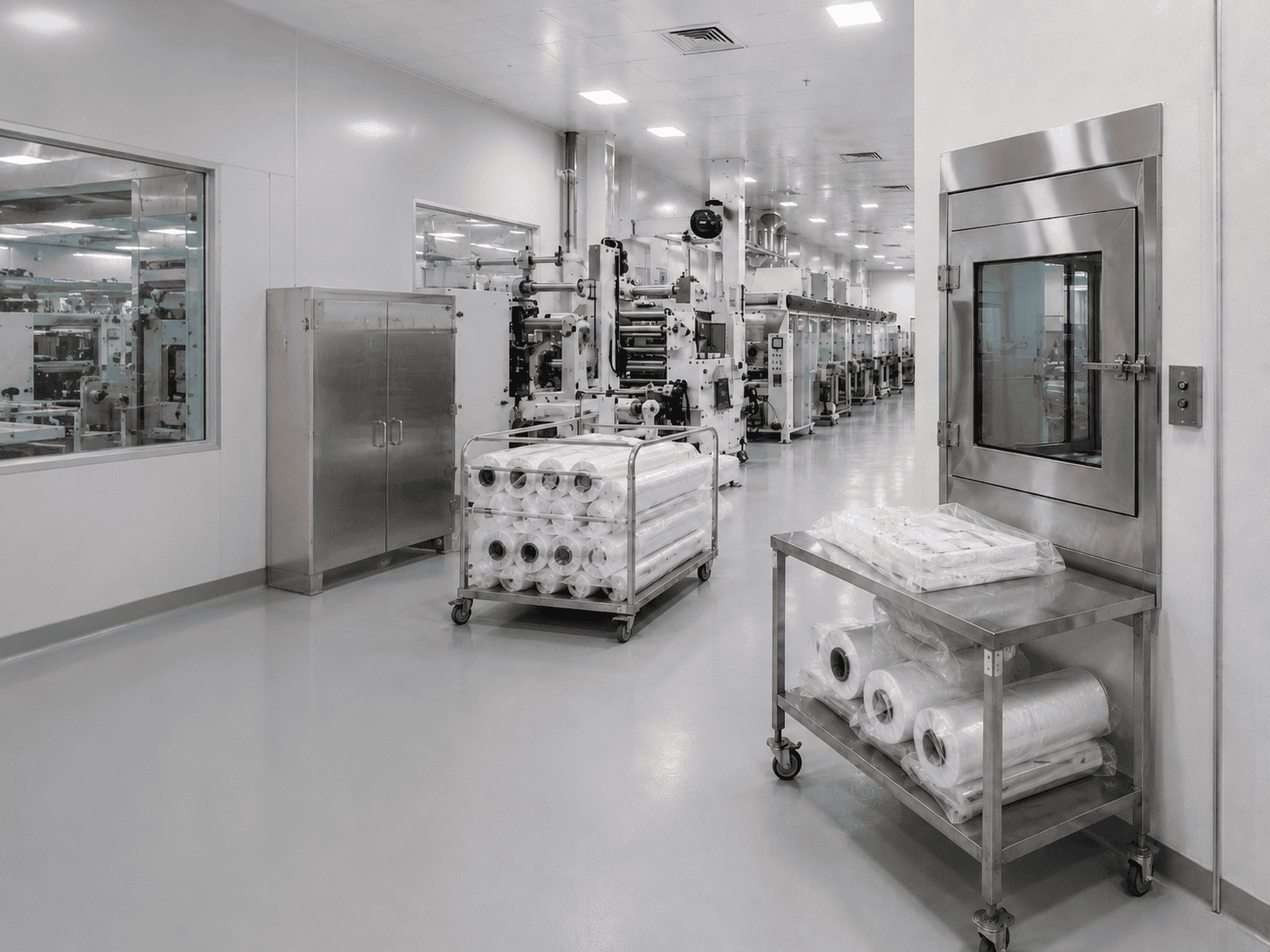

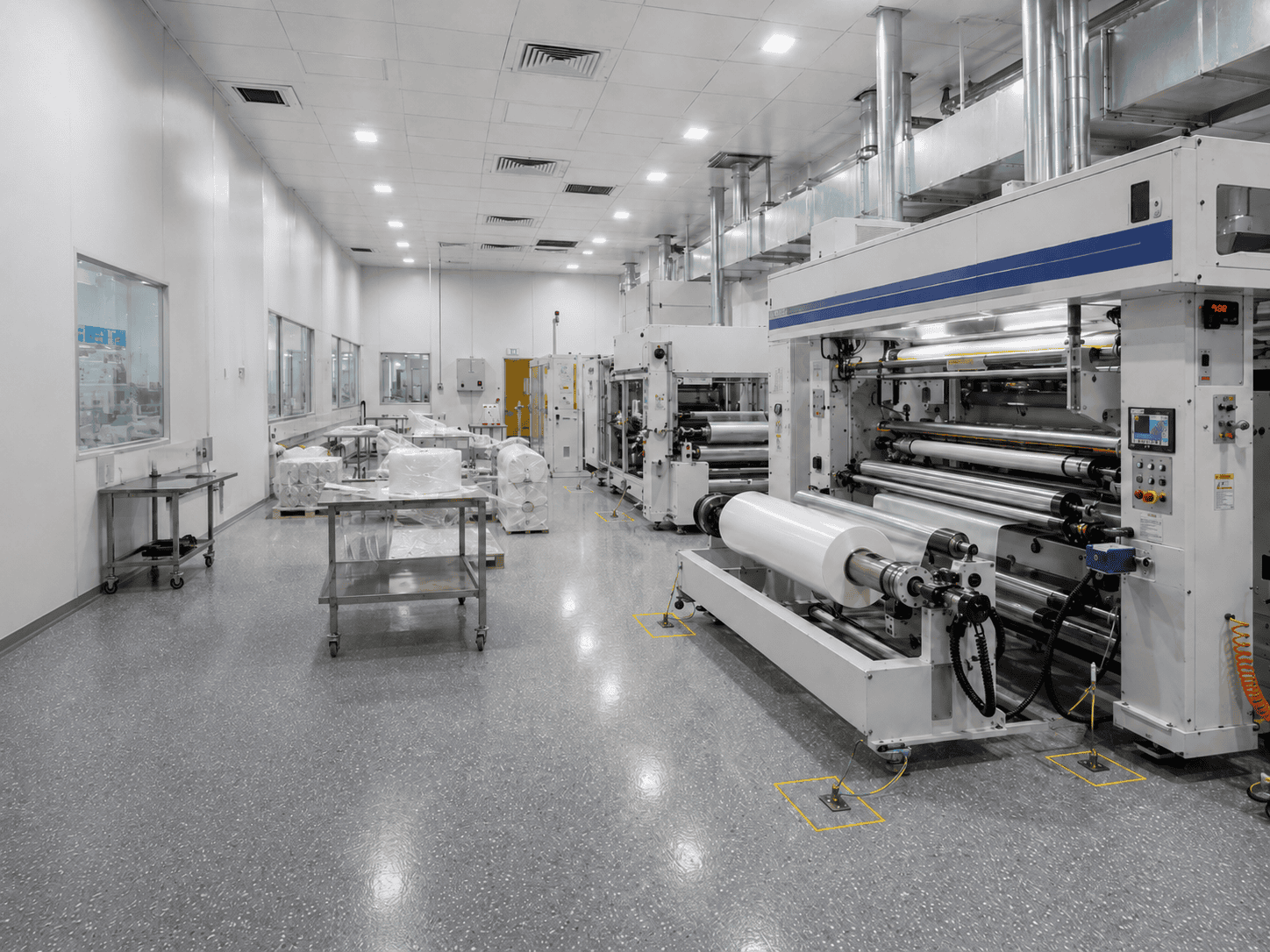

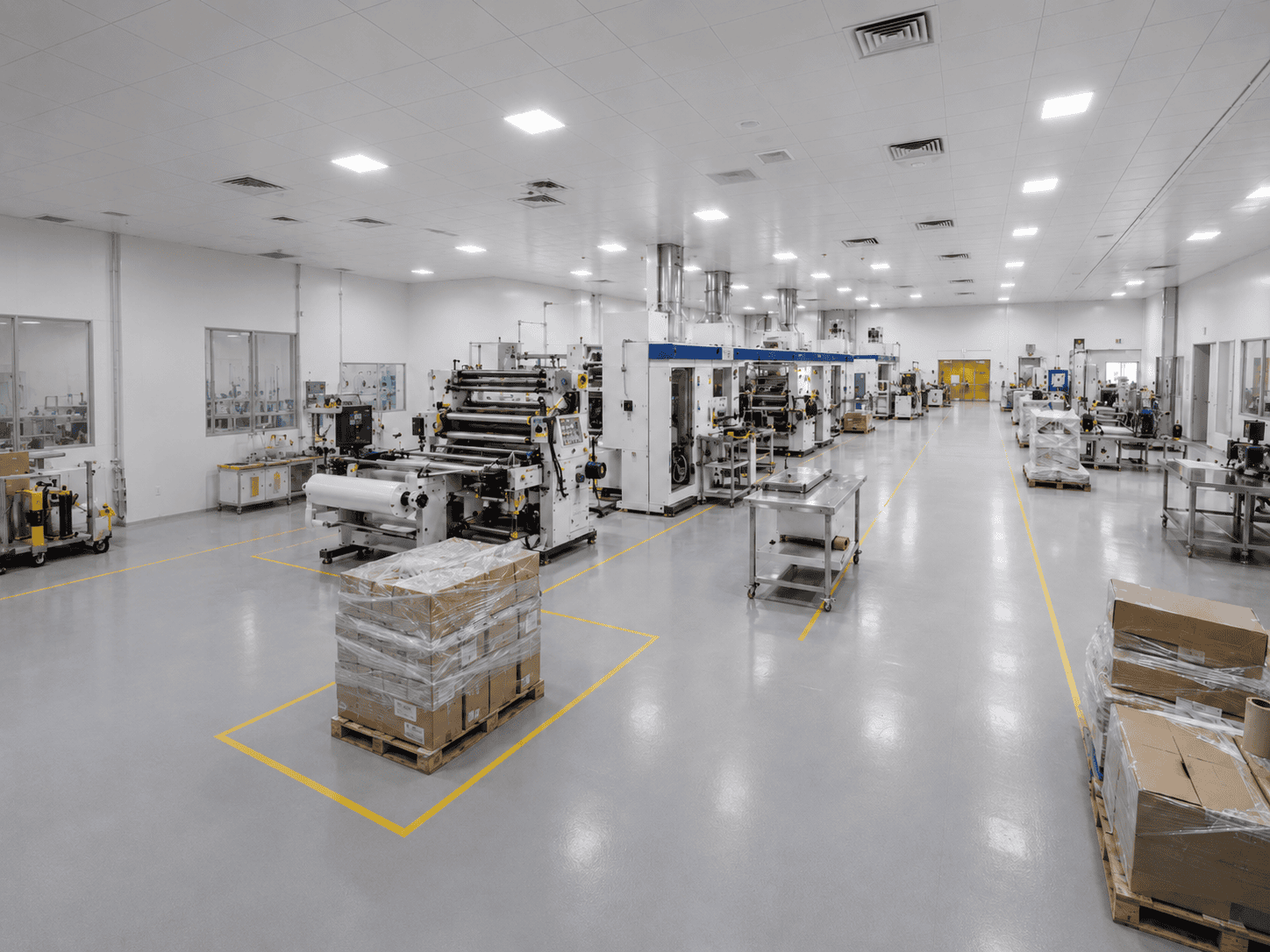

Precision Printing Cleanroom Project

This precision printing cleanroom project was designed for a manufacturer in Penang, Malaysia, specializing in high-precision film printing, coating, laminating, roll material processing, and printed packaging production. The client needed a cleaner and more stable production environment to reduce dust defects, control static electricity, improve printing consistency, and protect sensitive film and printed surfaces during production.

STJh Cleanroom provided a complete cleanroom solution covering cleanroom layout design, wall and ceiling systems, HEPA filtration, dust-free airflow, temperature and humidity control, static control, pressure zoning, material transfer, inspection lighting, environmental monitoring, and installation support. The project was designed around real production equipment, roll material handling, operator movement, inspection workflow, and future production expansion.

Unlike a general printing workshop, this cleanroom focuses on particle control, airflow stability, static reduction, temperature and humidity consistency, and cleaner material movement. These systems help reduce print defects, improve surface quality, and support more reliable precision printing and converting operations.

Project Overview

Project Type	Precision Printing Cleanroom Project
Project Location	Penang, Malaysia
Industry	Precision Printing, Film Printing, Coating, Laminating, and Packaging Materials
Cleanroom Area	Approximately 1,280㎡
Cleanliness Class	ISO 7 printing and coating area, ISO 8 material preparation and support area
Application	Film printing, coating, laminating, roll material handling, visual inspection, packaging material processing, and clean material transfer
Project Duration	46 days from material preparation to installation completion
Cleanroom Color Design	Light gray wall and ceiling system with soft blue lower wall panels and yellow floor guide lines
Cleanroom Structure	Cleanroom wall panels, sealed ceiling system, cleanroom doors, observation windows, sealed joints, and easy-clean production surfaces
Air Filtration System	HEPA filtration with controlled supply air and return air design for dust-sensitive printing and coating zones
Temperature & Humidity Control	Stable HVAC control to support ink performance, film handling, coating quality, and dimensional stability
Static Control	Antistatic flooring, grounding points, equipment grounding, and static reduction planning for film and roll material handling
Pressure Control	Pressure zoning between printing rooms, coating areas, material airlocks, corridors, and support areas
Material Transfer	Pass-through transfer and clean material flow design for substrates, films, tools, packaging materials, and finished rolls
Inspection System	Uniform LED lighting, observation windows, inspection workstations, and visual control areas for quality checking
Monitoring System	Real-time monitoring for temperature, humidity, differential pressure, and room status alarm
Key Equipment	HEPA filters, air supply diffusers, return air grilles, cleanroom doors, observation windows, pass-through units, monitoring devices, LED lighting, stainless steel worktables, and antistatic floor system
Project Goal	Reduce dust defects, improve print surface quality, control static electricity, stabilize printing conditions, and support high-consistency precision printing production

Project Background

Precision printing, coating, and laminating processes are highly sensitive to dust, static electricity, temperature, humidity, and material handling conditions. Even small airborne particles may cause visible surface defects, coating marks, printing spots, scratches, or quality rejection. For roll-to-roll production, unstable room conditions may also affect film tension, ink behavior, registration accuracy, and final product consistency.

Before this project, the client was concerned about dust contamination on printed surfaces, static attraction during film handling, humidity-related material variation, and unstable working conditions around the printing and coating lines. The client needed a cleanroom that could protect the production process without making daily operation difficult.

STJh Cleanroom designed the cleanroom around printing equipment, coating lines, roll material transfer, inspection workstations, packaging areas, and support corridors. The final layout provides a cleaner production environment, organized workflow, improved process visibility, and better environmental control for precision printing production.

Client Pain Points

Dust defects on printed surfaces: Airborne particles could create spots, scratches, coating marks, and visible print defects.
Static electricity: Film and roll materials could attract dust and particles, affecting surface quality and material handling stability.
Temperature and humidity fluctuation: Unstable room conditions could influence ink performance, coating quality, film tension, and registration accuracy.
Cross-contamination between areas: Poor separation between printing, coating, material preparation, and support zones could increase contamination risk.
Material transfer problems: Uncontrolled movement of substrates, tools, rolls, and packaging materials could disturb cleanliness and workflow.
Poor inspection visibility: Inconsistent lighting and limited visual access could make defects harder to detect during production.
Workflow conflict: Printing equipment, operators, carts, and roll materials required enough space for safe movement and maintenance access.

Cleanroom Solution

STJh Cleanroom provided a full cleanroom solution based on the client’s precision printing process and equipment layout. The cleanroom was divided into printing zones, coating and laminating areas, material preparation areas, inspection areas, transfer points, corridors, and support rooms.

The cleanroom uses HEPA-filtered air supply, organized return air design, temperature and humidity control, static control, pressure zoning, clean material transfer, inspection lighting, and environmental monitoring. This combination helps reduce airborne contamination, improve surface quality, stabilize process conditions, and support cleaner daily production.

Key Cleanroom Systems

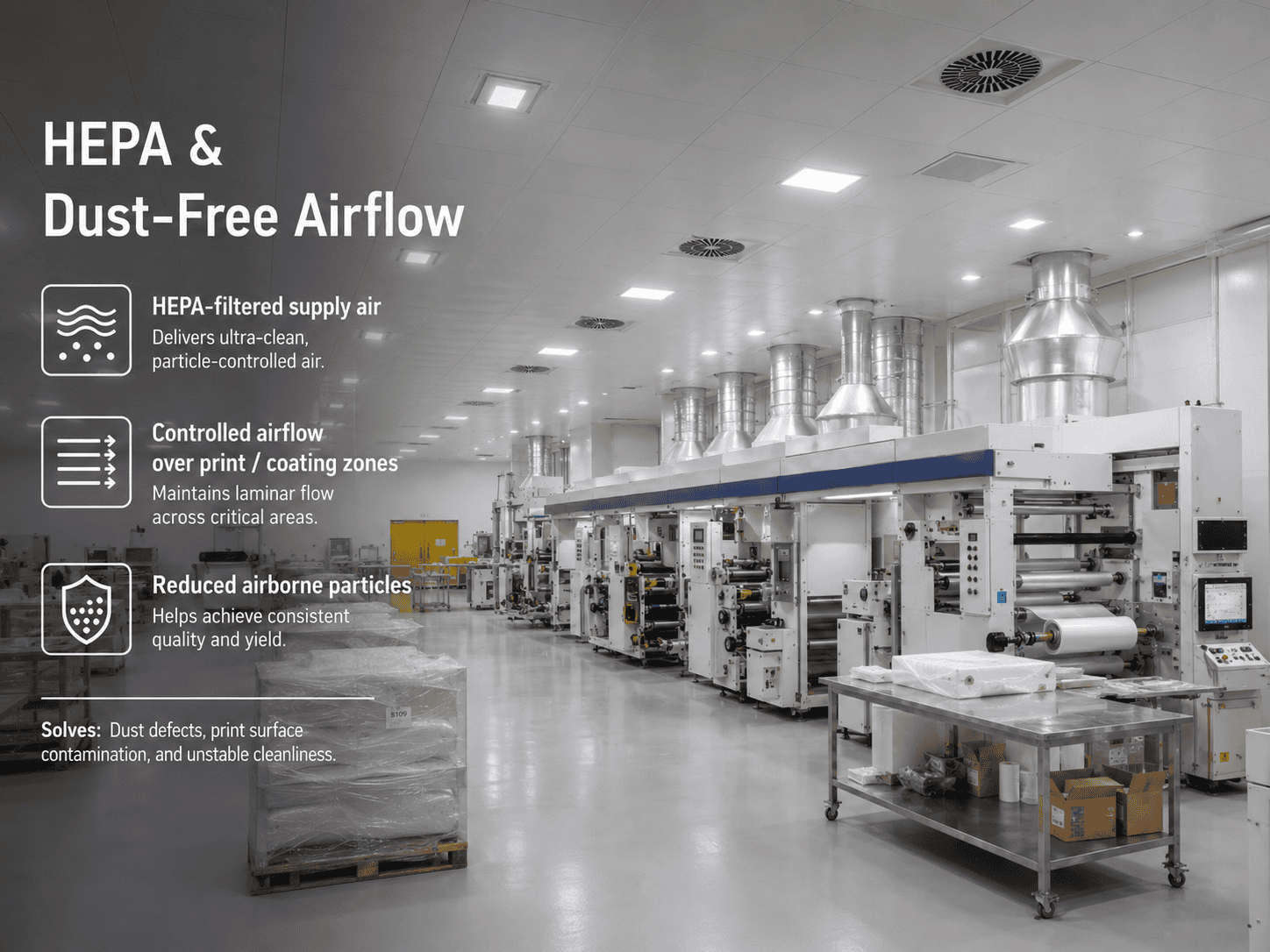

1. HEPA & Dust-Free Airflow System

The cleanroom uses HEPA filtration and controlled airflow to reduce airborne particles around printing, coating, and laminating lines. Stable air distribution helps reduce dust settlement on film, rollers, printed surfaces, and worktables.

HEPA-filtered supply air
Controlled airflow over printing and coating zones
Return air design for room stability
Reduced dust defects and surface contamination

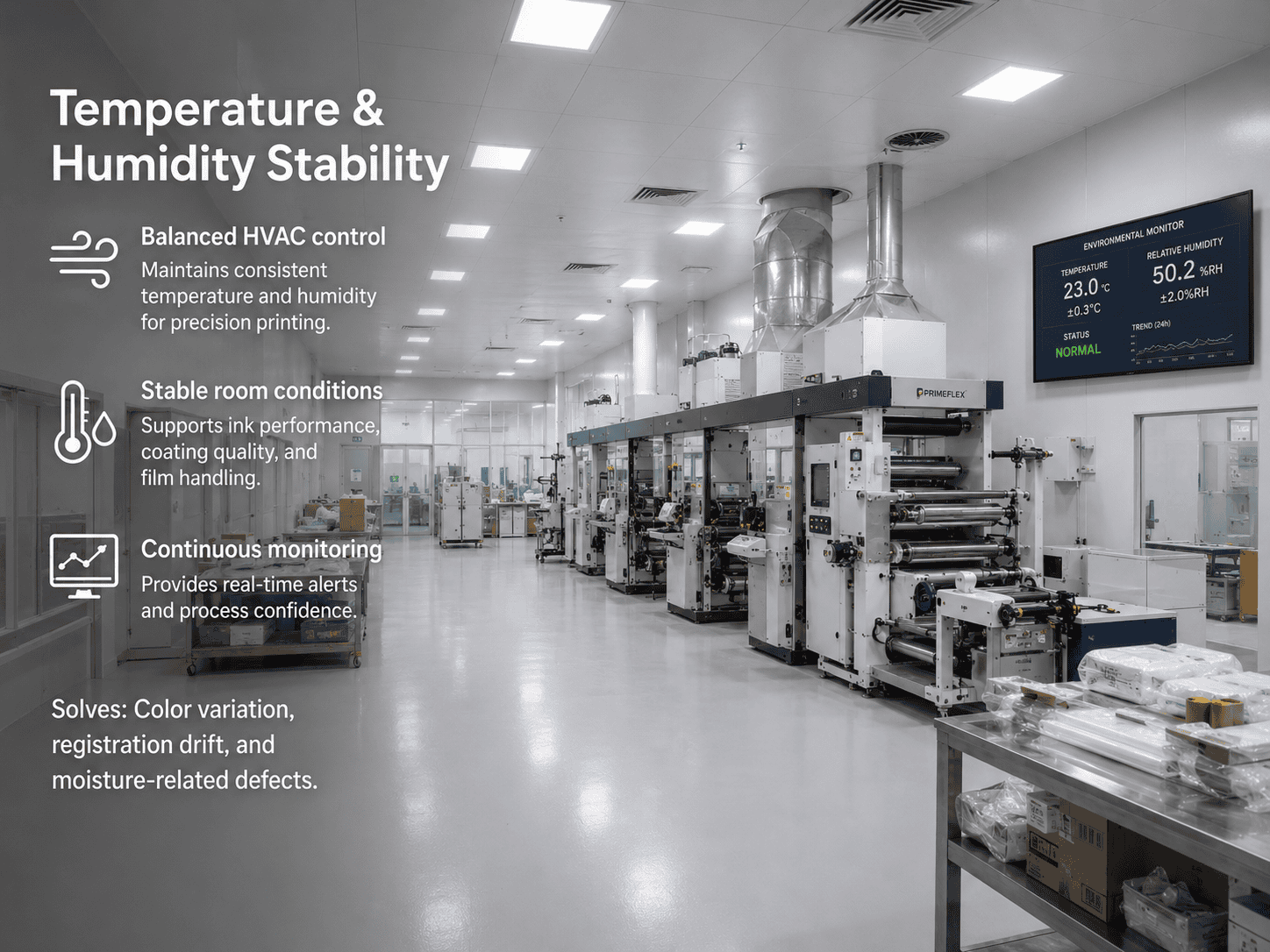

2. Temperature & Humidity Stability

Stable temperature and humidity are important for ink performance, coating quality, film handling, and registration accuracy. The HVAC system was designed to support consistent room conditions during daily production.

Balanced HVAC control
Continuous temperature and humidity monitoring
Stable conditions for film and substrate handling
Reduced color variation, registration drift, and moisture-related defects

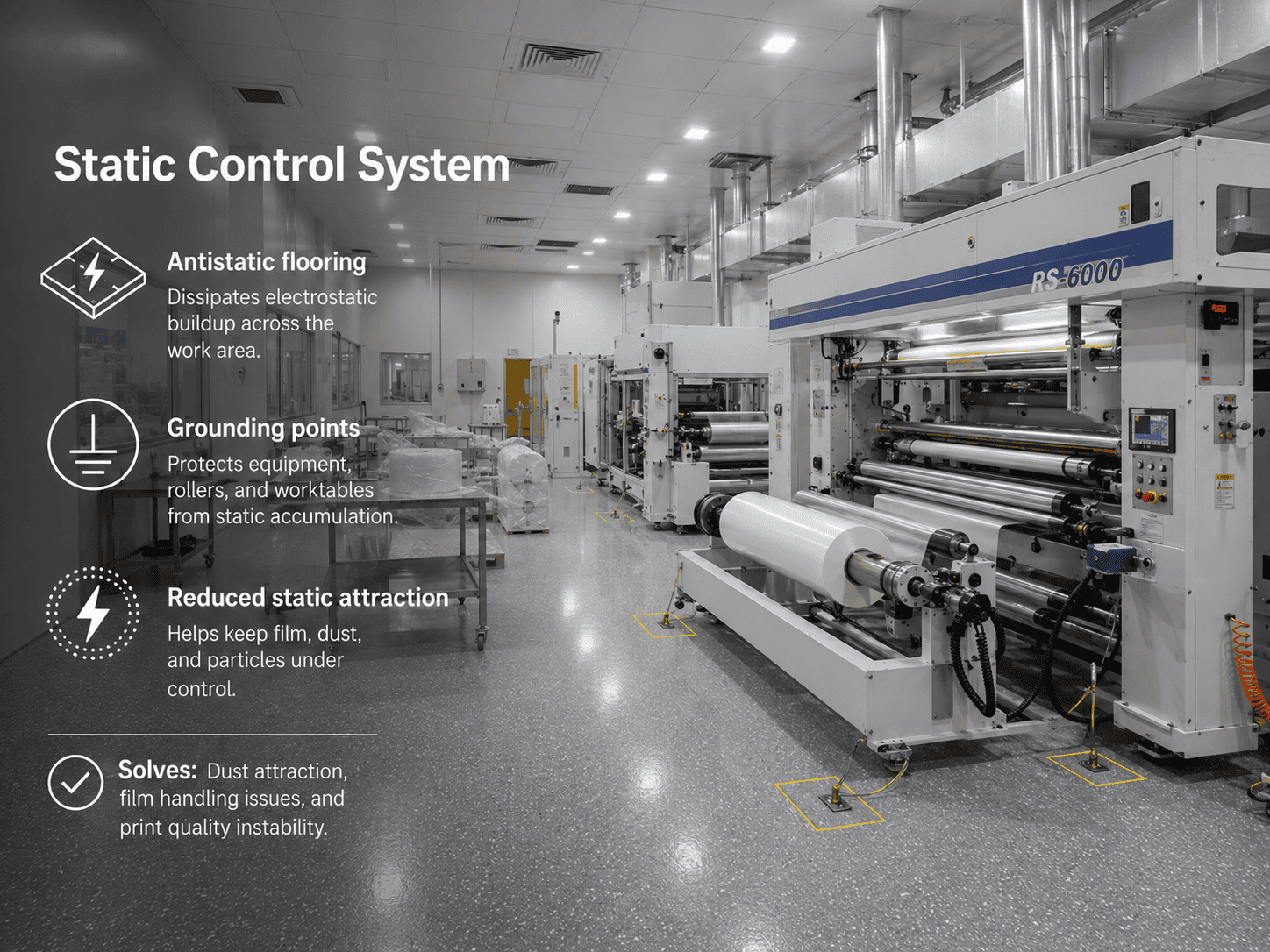

3. Static Control System

Film, plastic substrates, and roll materials can easily generate static electricity during printing and converting. The cleanroom includes antistatic flooring, grounding points, equipment grounding, and static control planning to reduce dust attraction and handling problems.

Antistatic flooring
Grounding points for equipment and worktables
Static reduction for film and roll materials
Reduced dust attraction and print quality instability

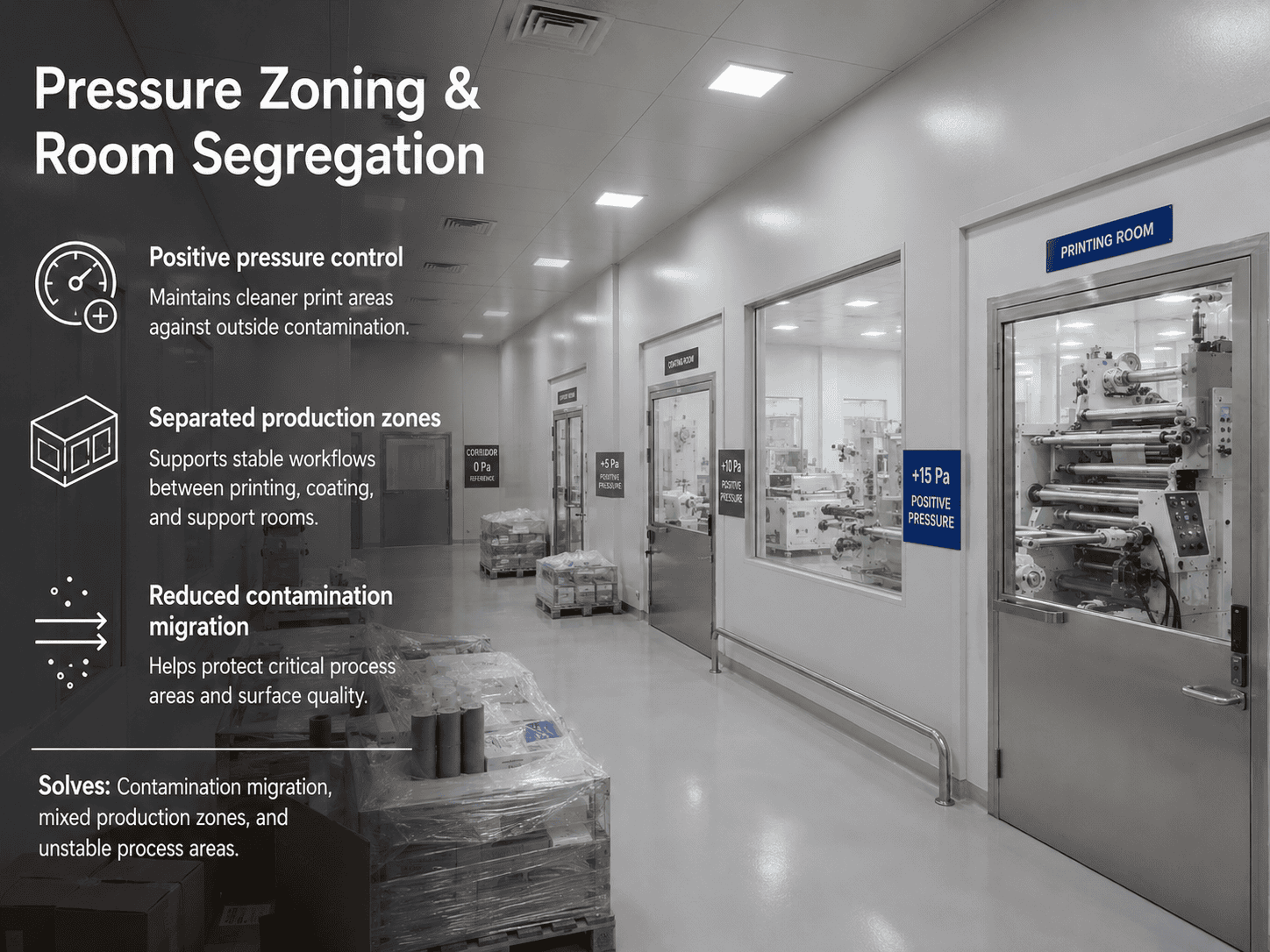

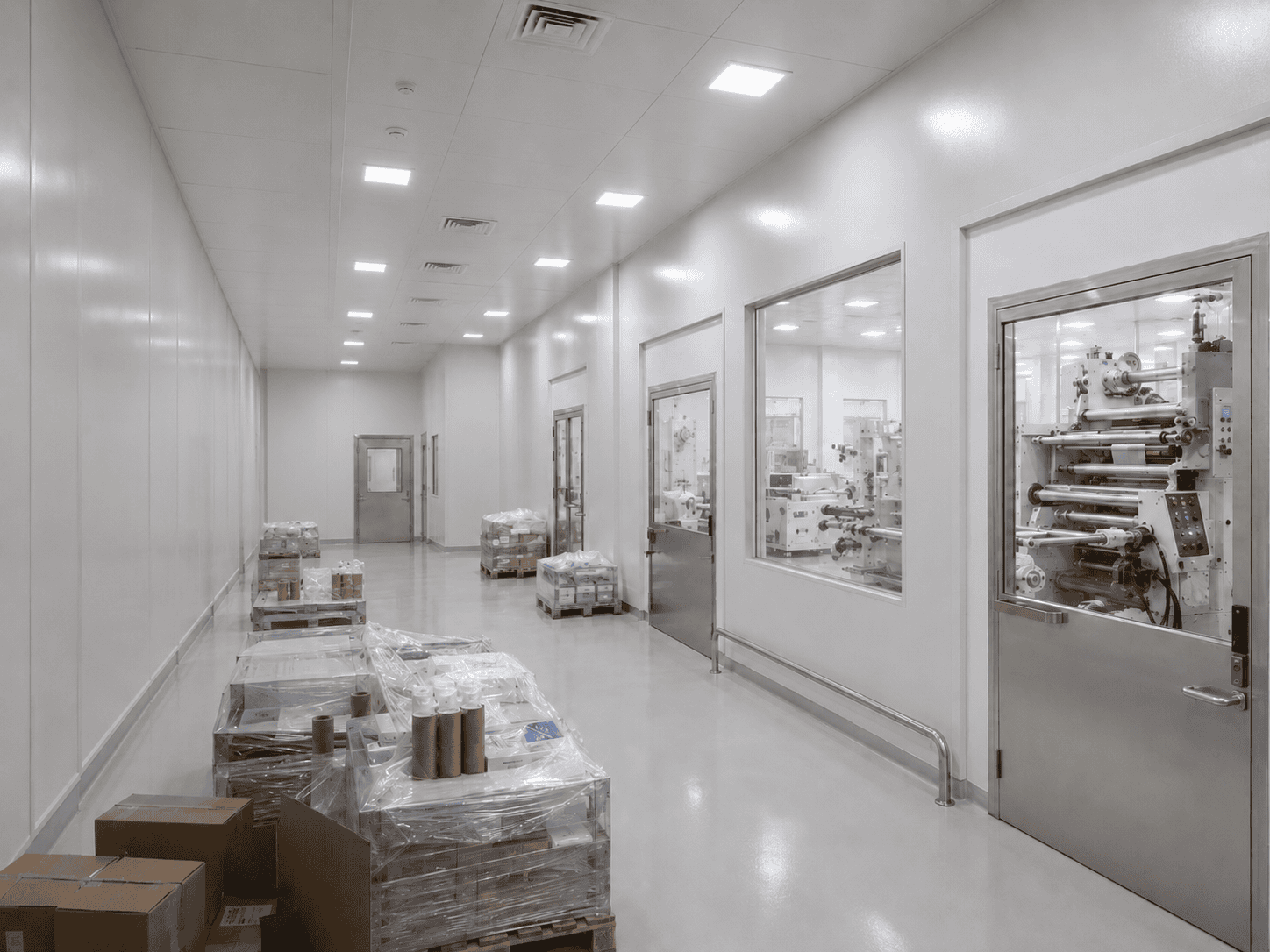

4. Pressure Zoning & Room Segregation

Pressure zoning helps separate critical printing and coating areas from material preparation rooms, corridors, and support areas. This reduces contamination migration and helps protect critical process zones.

Positive pressure for printing and coating rooms
Separated production and support areas
Cleaner workflow between rooms
Reduced outside contamination risk

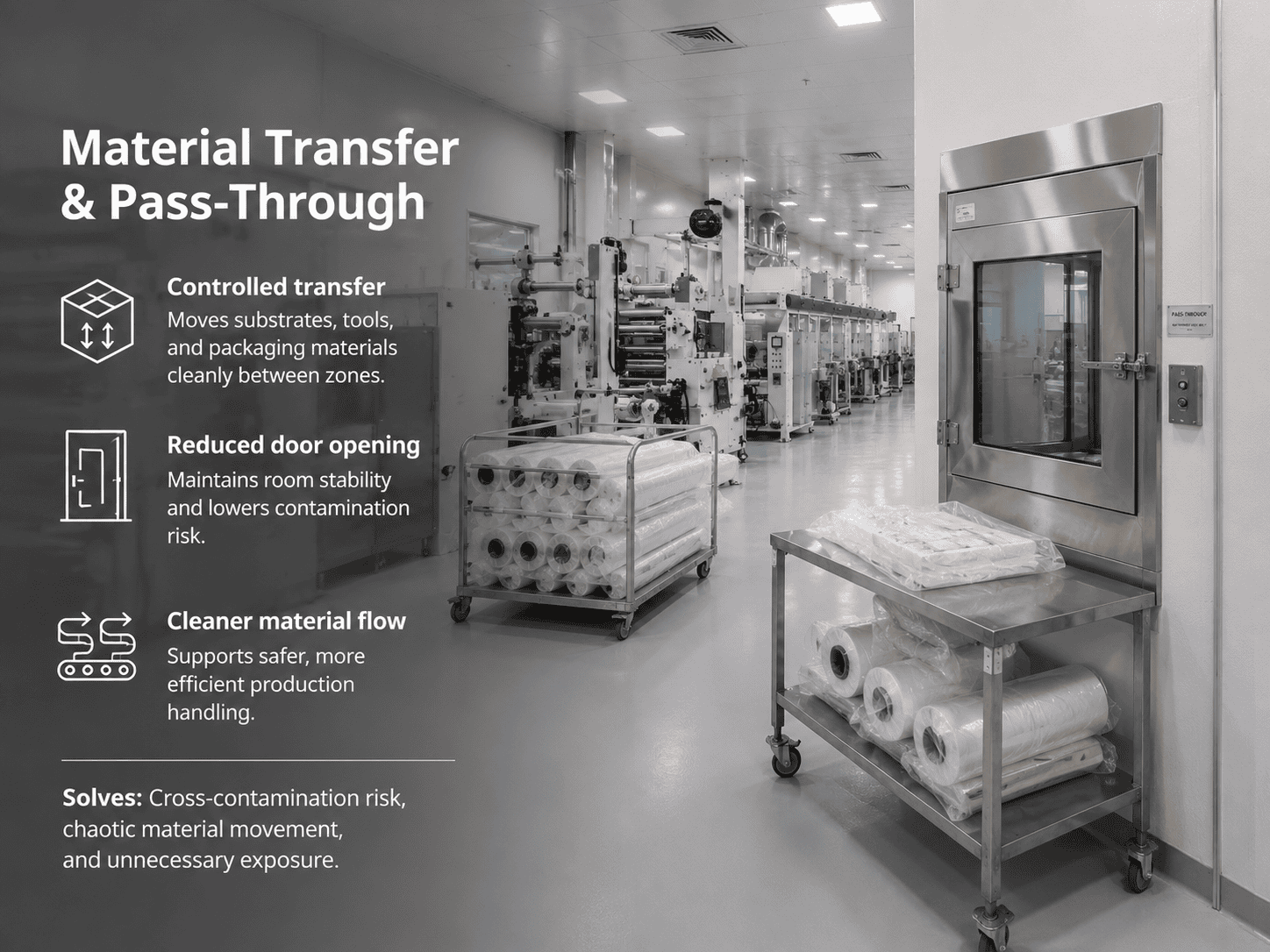

5. Material Transfer & Pass-Through

The material transfer system supports cleaner movement of substrates, films, tools, packaging materials, and finished rolls. Controlled pass-through transfer helps reduce unnecessary door opening and protects room pressure stability.

Controlled transfer of substrates and tools
Reduced door opening frequency
Cleaner material flow across production areas
Lower cross-contamination risk

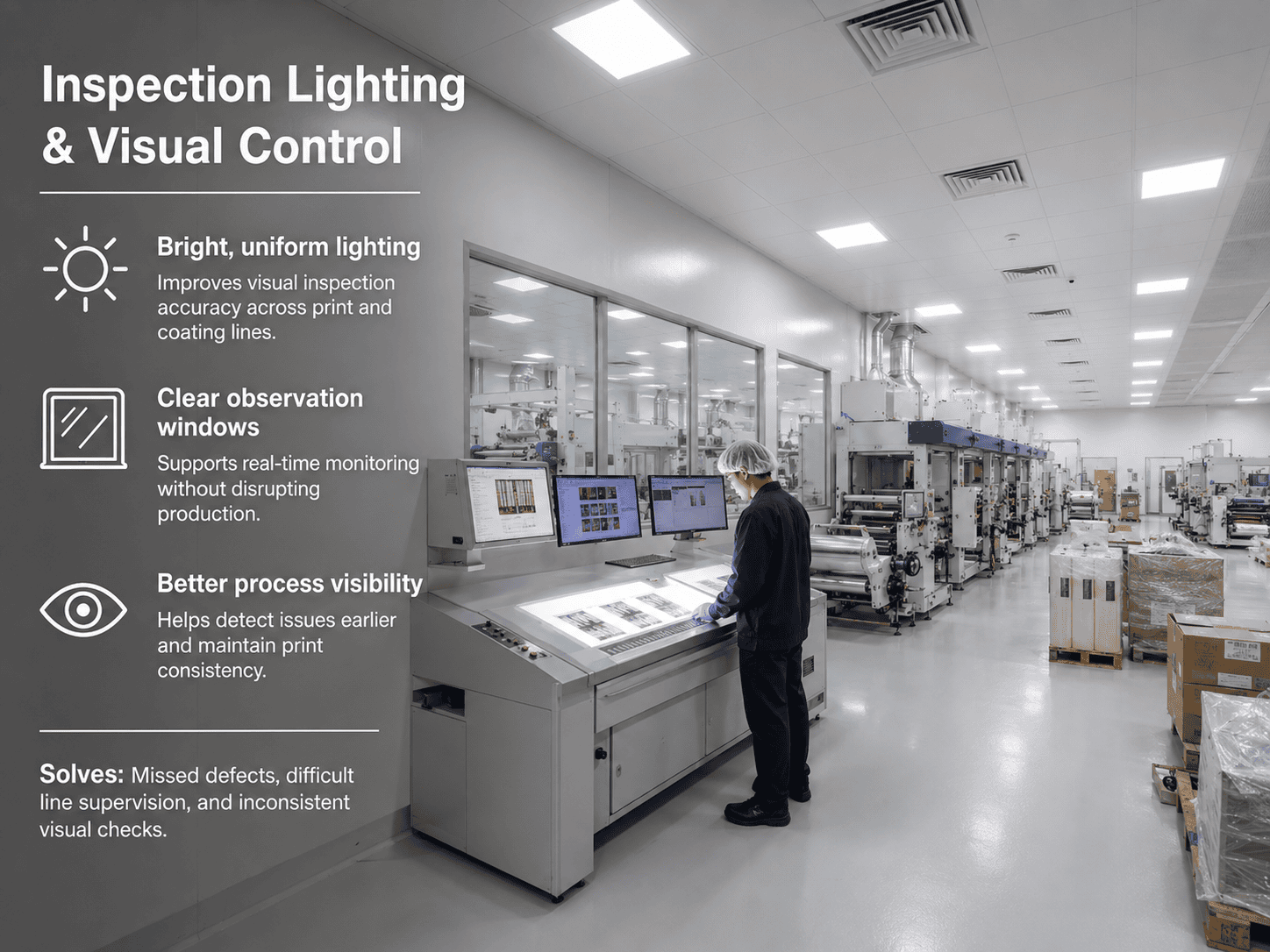

6. Inspection Lighting & Visual Control

Precision printing requires clear visual inspection for surface defects, registration problems, color variation, and coating marks. The cleanroom includes uniform LED lighting, observation windows, and inspection workstations to improve quality control visibility.

Bright and uniform LED lighting
Observation windows for process supervision
Inspection workstations for printed materials
Improved defect detection and production visibility

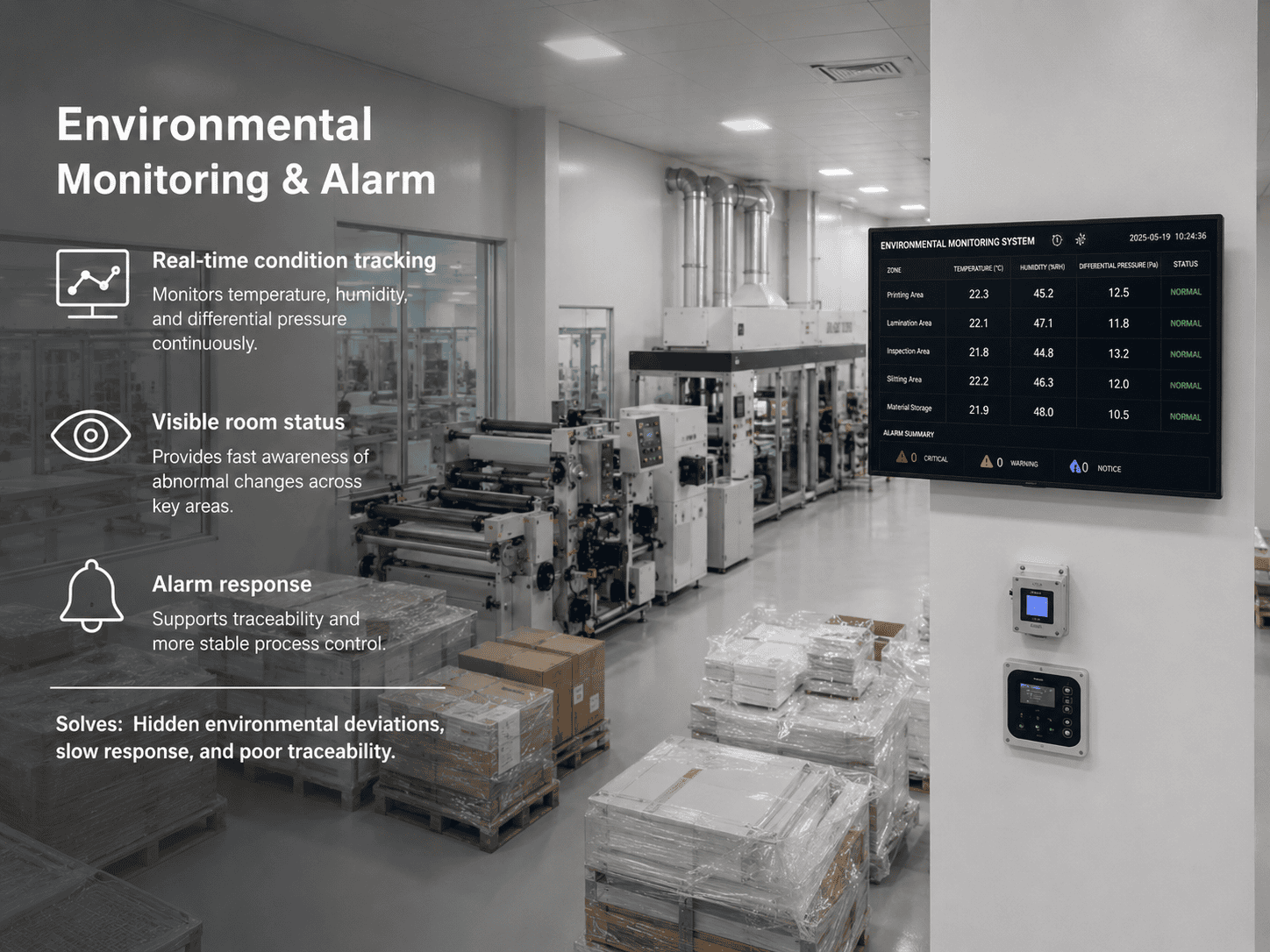

7. Environmental Monitoring & Alarm

The monitoring system allows the client to track key cleanroom conditions such as temperature, humidity, differential pressure, and room status. This helps identify abnormal conditions earlier and supports better production traceability.

Real-time temperature monitoring
Humidity tracking for process stability
Differential pressure monitoring
Alarm response for abnormal room conditions

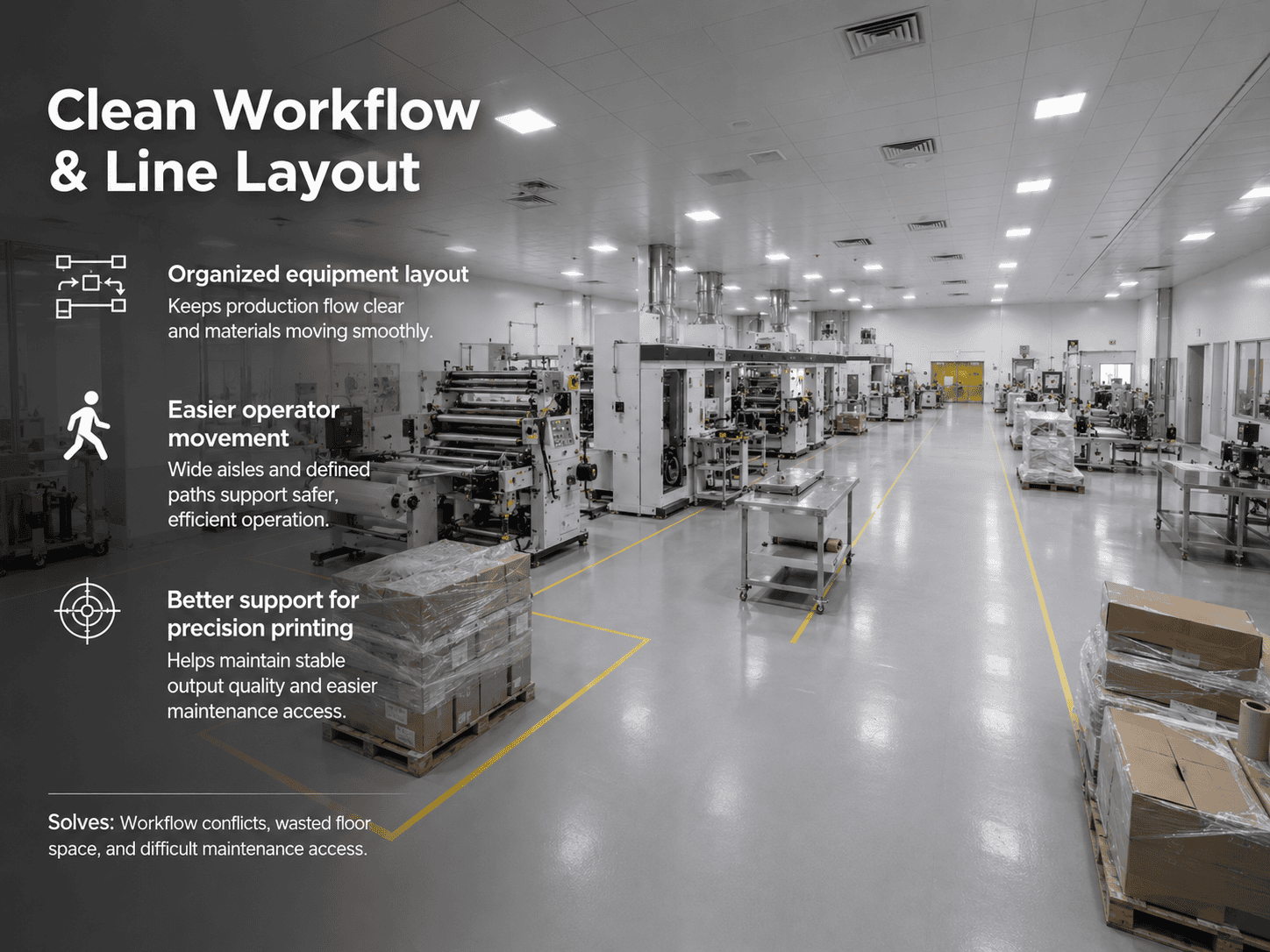

8. Clean Workflow & Line Layout

The cleanroom layout was planned around printing lines, coating equipment, material carts, operators, inspection stations, and maintenance access. This helps reduce workflow conflicts and makes daily production easier to manage.

Organized printing and coating line layout
Defined material and operator flow paths
Space for roll handling and inspection
Better maintenance access and future expansion potential

Problems Solved for the Client

Problem	Cleanroom Solution	Result
Dust caused visible defects on printed and coated surfaces	HEPA filtration, controlled airflow, and cleanroom enclosure	Reduced particle contamination and improved surface quality
Static electricity attracted dust to films and roll materials	Antistatic flooring, grounding points, and static control planning	Lower dust attraction and more stable film handling
Temperature and humidity fluctuation affected print consistency	HVAC control and environmental monitoring	More stable ink, coating, and substrate performance
Contamination moved between production and support areas	Pressure zoning and room segregation	Better protection for critical printing and coating zones
Material transfer disturbed room cleanliness and workflow	Pass-through transfer and clean material flow design	Cleaner and more organized movement of substrates, tools, and finished materials
Defects were difficult to detect during production	Uniform LED lighting, observation windows, and inspection workstations	Improved visual inspection and faster quality response

Project Result

After completion, the client received a 1,280㎡ precision printing cleanroom designed for film printing, coating, laminating, material transfer, inspection, and packaging support. The cleanroom provides a more controlled production environment for dust-sensitive printing processes and helps reduce surface defects, static-related problems, and environmental variation.

The final cleanroom layout supports long production lines, roll material handling, operator movement, inspection workflow, and future production expansion. For precision printing manufacturers, this type of cleanroom is not only a cleaner production space, but also an important part of quality stability and process control.

Why Choose STJh Cleanroom for Precision Printing Cleanrooms?

Custom cleanroom design based on real printing, coating, and laminating workflow
Turnkey support from cleanroom layout design to installation guidance
Solutions for film printing, packaging printing, coating, laminating, and roll material processing
Integrated HEPA filtration, airflow control, HVAC, static control, pressure zoning, and monitoring systems
Cleanroom layout planning for equipment, operators, materials, carts, and maintenance routes
Support for ISO 6, ISO 7, and ISO 8 cleanroom requirements
Suitable for new cleanroom construction and cleanroom upgrade projects
